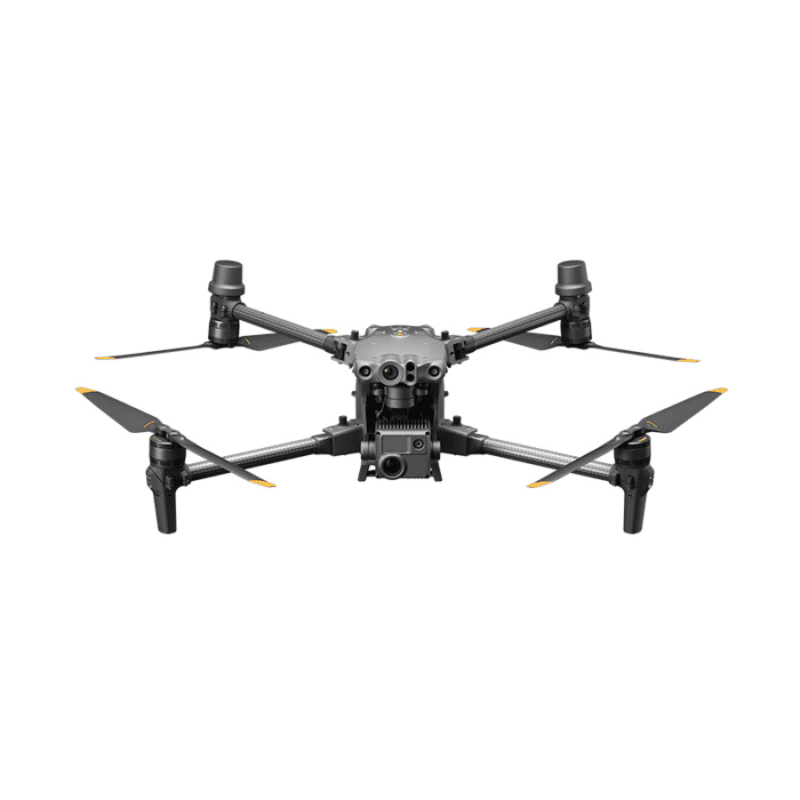

DJI M30 Drone Camera

Aircraft

Dimensions
(unfolded, excl. propellers)
470×585×215 mm (L×W×H)
Dimensions (folded)
365×215×195 mm (L×W×H)
Diagonal Wheelbase
668 mm
Weight (incl. two batteries)
3770 ± 10 g
Max Takeoff Weight
4069 g
Max Takeoff Weight for C2 Certification in EU
3998 g
Operation Frequency[1]
2.4000-2.4835 GHz; 5.725-5.850 GHz
Transmitter Power (EIRP)
2.4 GHz: <33 dBm (FCC); <20 dBm (CE/SRRC/MIC)
5.8 GHz: <33 dBm (FCC/SRRC); <14 dBm (CE)
Hovering Accuracy
(windless or breezy)
Vertical: ±0.1 m (Vision System enabled); ±0.5 m (N-mode with GPS); ±0.1 m (RTK)
Horizontal: ±0.3 m (Vision System enabled); ±1.5 m (N-mode with GPS); ±0.1 m (RTK)
RTK Positioning Accuracy
(fixed RTK enabled)
1 cm+1 ppm (horizontal)
1.5 cm+1 ppm (vertical)
Max Angular Velocity
Pitch: 150°/sec.; Yaw: 100°/sec.
Max Pitch Angle
35° (N-mode and Forward Vision System enabled: 25°)
Max Ascent/Descent Speed
6 m/s, 5 m/s
Max Tilt Descent Speed
7 m/s
Max Horizontal Speed
23 m/s
Max Service Ceiling Above Sea Level (without other payload)
5,000 m (with 1671 propellers)
7,000 m (with 1676 propellers)
Max Wind Resistance
12 m/s
Max Hover Time [2]
36 min
Max Flight Time[2]
41 min
Motor Model
3511
Propeller Model
1671
1676 High Altitude (not included)
Ingress Protection Rating[3]
IP55
GNSS
GPS+Galileo+BeiDou+GLONASS
(GLONASS is supported only when RTK module is enabled)
Operating Temperature
-20° to 50° C (-4° to 122° F)
Class
C2 (EU)
Gimbal
Angular Vibration Range
±0.01°
Controllable Range
Pan: ±90°
Tilt: -120° to +45°
Mechanical Range
Pan: ±105°
Tilt: -135° to +60°
Roll: ±45°
Zoom Camera
Sensor
1/2″ CMOS, Effective pixels: 48M
Lens
Focal length: 21-75 mm (equivalent: 113-405 mm)
Aperture: f/2.8-f/4.2
Focus: 5 m to ∞
Exposure Compensation
±3 ev (using 1/3 ev as step length)
Electronic Shutter Speed
Auto Mode:
Photo: 1/8000-1/2 s
Video: 1/8000-1/30 s
M Mode:
Photo: 1/8000-8 s
Video: 1/8000 -1/30 s
ISO Range
100-25600
Max. Video Resolution
3840×2160
Max Photo Size
8000×6000
Wide Camera
Sensor
1/2″ CMOS, Effective pixels: 12M
Lens
DFOV: 84°
Focal length: 4.5 mm (equivalent: 24 mm)
Aperture: f/2.8
Focus: 1 m to ∞
Exposure Compensation
±3 ev (using 1/3 ev as step length)
Electronic Shutter Speed
Auto Mode:
Photo: 1/8000-1/2 s
Video: 1/8000-1/30 sM Mode:
Photo: 1/8000-8 s
Video: 1/8000-1/30 s
ISO Range
100-25600
Max. Video Resolution
3840×2160
Photo Size
4000×3000
Thermal Camera
Thermal Imager
Uncooled VOx Microbolometer
Lens
DFOV: 61°
Focal length: 9.1 mm (equivalent: 40 mm)
Aperture: f/1.0
Focus: 5 m to ∞
Noise Equivalent Temperature Difference (NETD)
≤50 mK@F1.0
Infrared Temperature Measurement Accuracy[4]
±2°C or ±2% (using the larger value)
Video Resolution
Infrared Image Super-resolution Mode: 1280×1024
Normal Mode: 640×512
Photo Size
Infrared Image Super-resolution Mode: 1280×1024
Normal Mode: 640×512
Pixel Pitch
12 um
Temperature Measurement Method
Spot Meter, Area Measurement
Temperature Measurement Range
High Gain Mode: -20° to 150° C (-4° to 302° F)
Low Gain Mode: 0° to 500° C (32° to 932° F)
Temperature Alert
Supported
Palette
White Hot/Black Hot/Tint/Iron Red/Hot
Iron/Arctic/Medical/Fulgurite/Rainbow 1/Rainbow 2
FPV Camera
Resolution
1920×1080
DFOV
161°
Frame Rate
30 fps

Laser Module

Wavelength

905 nm

Max Laser Power

3.5 mW

Single Pulse Width

6 ns

Measurement Accuracy

± (0.2 m + D×0.15%)
D is the distance to a vertical surface

Measuring Range

3-1,200 m (0.5×12 m vertical surface with 20% reflectivity)

Safety Regulation Level

Class 1M

Accessible Emission Limit (AEL)

304.8 nJ

Reference Aperture

18mm length, 18mm width (20.3mm diameter if equivalent to circular)

Max Laser Pulse Emission Power Within 5 Nanoseconds

60.96 W

Vision Systems

Obstacle Sensing Range

Forward: 0.6-38 m
Upward/Downward/Backward/Sideward: 0.5-33 m

FOV

65° (H), 50° (V)

Operating Environment

Surfaces with clear patterns and adequate lighting (> 15 lux)

Infrared Sensing Systems

Obstacle Sensing Range

0.1 to 10 m

FOV

30°

Operating Environment

Large, diffuse, and reflective obstacles (reflectivity >10%)

TB30 Intelligent Flight Battery

Capacity

5880 mAh

Voltage

26.1 V

Battery Type

Li-ion 6S

Energy

131.6 Wh

Net Weight

Approx. 685 g
Operating Temperature
-20° to 50° C (-4° to 122° F)

Storage Temperature

20° to 30° C (68° to 86° F)

Charging Temperature

-20° to 40° C (-4° to 104° F)
(When the temperature is lower than 10° C (50° F), the self-heating function will be automatically enabled. Charging in a low temperature may shorten the lifetime of the battery)

Chemical System

LiNiMnCoO2

Auxiliary Lights

Effective Illumination Distance

5 m

Illumination Type

60 Hz, solid glow

Remote Controller

Screen

7.02 inch LCD touchscreen, with a resolution of 1920×1200 pixels, and high brightness of 1200 cd/m2

Internal Battery

Type: Li-ion (6500 mAh @ 7.2 V)
Charge Type: Supports battery station or USB-C charger maximum rated power 65W (max voltage of 20V)
Charge Time: 2 hours
Chemical System: LiNiCoAIO2

External Battery(WB37 Intelligent Battery)

Capacity: 4920 mAh
Voltage: 7.6 V
Battery Type: Li-ion
Energy: 37.39 Wh
Chemical System: LiCoO2

Operating Time[5]

Internal Battery: Approx. 3 hours 18 min
Internal Battery + External Battery: Approx. 6 hours

Ingress Protection Rating[3]

IP54

GNSS

GPS+Galileo+BeiDou

Operating Temperature

-20° to 50° C (-4° to 122° F)

O3 Enterprise

Operating Frequency[1]

2.4000-2.4835 GHz, 5.725-5.850 GHz

Max Transmission Distance (unobstructed, free of interference)

15 km (FCC); 8 km (CE/SRRC/MIC)

Max Transmission Distance (with interference)

Strong Interference (urban landscape, limited line of sight, many competing signals): 1.5-3 km (FCC/CE/SRRC/MIC)
Medium Interference (suburban landscape, open line of sight, some competing signals): 3-9 km (FCC); 3-6 km (CE/SRRC/MIC)
Weak Interference (open landscape abundant line of sight, few competing signals): 9-15 km (FCC); 6-8 km (CE/SRRC/MIC)

Transmitter Power (EIRP)

2.4 GHz: <33 dBm (FCC); <20 dBm (CE/SRRC/MIC)
5.8 GHz: <33 dBm (FCC); <14 dBm (CE); <23 dBm (SRRC)

Wi-Fi

Protocol

Wi-Fi 6

Operating Frequency[1]

2.4000-2.4835 GHz; 5.150-5.250 GHz; 5.725-5.850 GHz

Transmitter Power (EIRP)

2.4 GHz: <26 dBm (FCC); <20 dBm (CE/ SRRC/MIC)
5.1 GHz: <26 dBm (FCC); <23 dBm (CE/ SRRC/MIC)
5.8 GHz: <26 dBm (FCC/SRRC); <14 dBm(CE)

Bluetooth

Protocol
Bluetooth 5.1

Operating Frequency

2.4000-2.4835 GHz

Transmitter Power (EIRP)

<10 dBm

BS30 Intelligent Battery Station

Dimensions

353×267×148 mm

Net Weight

3.95 kg

Compatible Battery Type

TB30 Intelligent Flight Battery
WB37 Intelligent Battery

Input

100-240 VAC, 50/60 Hz

Output

TB30 Battery Port: 26.1 V, 8.9 A (supported up to two outputs simultaneously)
WB37 Intelligent Battery: 8.7 V, 6 A

Output Power

525 W

USB-C port

Max. output power of 65 W

USB-A port

Max. output power of 10 W (5 V, 2 A)

Power Consumption (when not charging battery)

< 8 W

Output Power (when warming up battery)

Approx. 30 W

Operating Temperature

-20° to 40° C (-4° to 104° F)

Ingress Protection Rating[3]

IP55 (with the cover closed properly)

Charging Time[6]

Approx. 30 min (charging two TB30 batteries from 20% to 90%)
Approx. 50 min (charging two TB30 batteries from 0% to 100%)

Protection Features

Anti-Backflow Protection
Short Circuit Protection
Over Voltage Protection
Over Current Protection
Temperature Protection

• What are the key features of the DJI M30 Drone Camera?
  The DJI M30 Drone Camera offers wide and zoom lenses, a laser rangefinder, 360-degree obstacle avoidance, and seamless integration with enterprise tools.

• What is the flight time of the DJI M30 Drone Camera?
  The DJI M30 Drone Camera provides up to 41 minutes of flight time, depending on conditions and payload.

• What cameras are integrated into the DJI M30 Drone Camera?
  The M30 integrates wide-angle, zoom, and laser rangefinder cameras, offering versatility for detailed aerial data collection.

• What is the range of the DJI M30 Drone Camera?
  The DJI M30 Drone Camera has a maximum operation range of up to 7 km, offering reliable long-range connectivity.

• Is the DJI M30 Drone Camera weather-resistant?
  Yes, the DJI M30 Drone Camera is IP55-rated, providing strong resistance against dust, water, and harsh weather conditions.

• What temperature range can the DJI M30 Drone Camera operate in?
  The DJI M30 Drone Camera is resilient in temperatures ranging from -35℃ to 50℃, making it suitable for extreme environments.

• How does the DJI M30 Drone Camera handle obstacle avoidance?
  The M30 is equipped with dual-vision and ToF sensors on all six sides for comprehensive 360-degree obstacle detection and avoidance.

• What transmission technology does the DJI M30 Drone Camera use?
  The M30 utilizes OcuSync 3 Enterprise, enabling triple-channel 1080p video transmission and seamless switching between input feeds.

• Is the DJI M30 Drone Camera compatible with the DJI RC Plus controller?
  Yes, the M30 is designed to work seamlessly with the DJI RC Plus controller, featuring a 7-inch widescreen and dual control mode.

• How does the DJI M30 Drone Camera integrate with FlightHub 2?
  The M30 syncs flight routes and mission data with FlightHub 2, allowing for unified management, cloud mapping, and real-time site overviews.

• What is the DJI Dock (M30 Series Dock Version) used for?
  The DJI Dock provides automated takeoff, landing, and charging for the M30, enabling remote operations with a range of up to 7 km.

• What sensors are included in the DJI M30 Drone Camera?
  The M30 includes wide-angle, zoom, and laser rangefinder sensors, along with ADS-B for real-time alerts of nearby aircraft.

• What is the maximum zoom capability of the DJI M30 Drone Camera?
  The M30 offers a powerful zoom capability, combining optical and digital zoom to provide detailed visuals from a distance.

• Can the DJI M30 Drone Camera perform thermal imaging?
  Yes, the M30 integrates thermal imaging for operations requiring heat detection, ideal for inspections and search-and-rescue missions.

• How does the DJI M30 Drone Camera handle data management?
  The M30 works with Pilot 2 and FlightHub 2, where media files, flight logs, and mission data can be automatically uploaded for easy management.

• What industries is the DJI M30 Drone Camera suitable for?
  The M30 is ideal for public safety, infrastructure inspection, energy, mapping, and emergency response applications.

• What is the charging time for the DJI M30 Drone Camera?
  The M30 features rapid charging with the DJI Dock, reducing downtime and enabling continuous operations.

• How portable is the DJI M30 Drone Camera?
  The M30’s foldable design and lightweight build make it highly portable, allowing for quick deployment in the field.

• What is the advantage of the DJI M30 Drone Camera’s ADS-B receiver?
  The built-in ADS-B receiver provides real-time warnings of incoming aircraft, enhancing flight safety in busy airspaces.

• Does the DJI M30 Drone Camera support cloud-based mapping?
  Yes, the M30 integrates with FlightHub 2 for fast cloud mapping in RGB or infrared, enabling quick terrain awareness and site overview.
