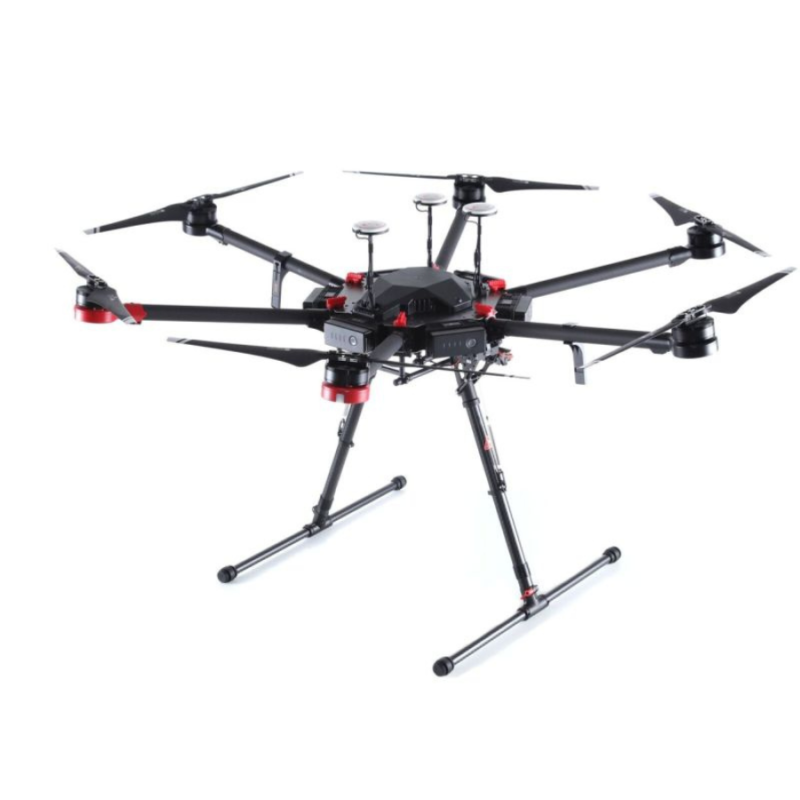

DJI Matrice 600 Pro
The DJI Matrice 600 Pro is a powerful and versatile drone platform built for professional aerial photography, industrial inspections, and complex mapping. It features advanced A3 Pro flight control and Lightbridge 2 HD transmission for precise control and reliable, long-range connectivity. Supporting various cameras and payloads, it’s ideal for industries like filmmaking, surveying, and agriculture. The robust propulsion system ensures stable flight with heavy payloads, while its modular design allows easy setup, transport, and maintenance. With intelligent battery management, safety features, and up to 38 minutes of flight time, the Matrice 600 Pro excels in demanding missions.
Advanced A3 Pro Flight Control System: The DJI Matrice 600 Pro is equipped with the A3 Pro flight controller, offering enhanced stability, redundancy, and precision. It can be customized to match specific operational needs, making it ideal for professional drone applications such as filmmaking, industrial inspections, and mapping.
Lightbridge 2 HD Transmission for Long-Range Control: With Lightbridge 2 HD transmission, the DJI Matrice 600 Pro provides real-time video feed in 1080p at distances up to 5 kilometers. This ensures reliable, long-range connectivity for live monitoring and precise control during complex operations.

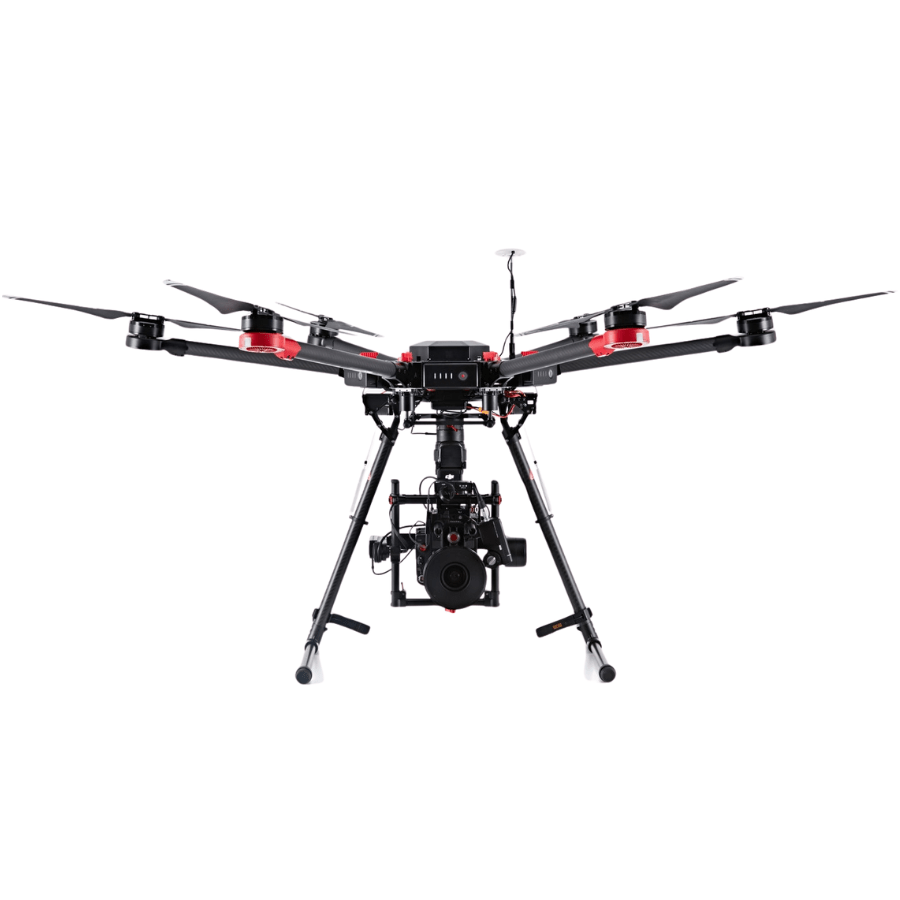

Supports Multiple Payloads and Cameras: The DJI Matrice 600 Pro is compatible with a wide range of cameras, including the Zenmuse series and third-party payloads like LiDAR systems, making it highly versatile for industries like agriculture, surveying, and cinematography.

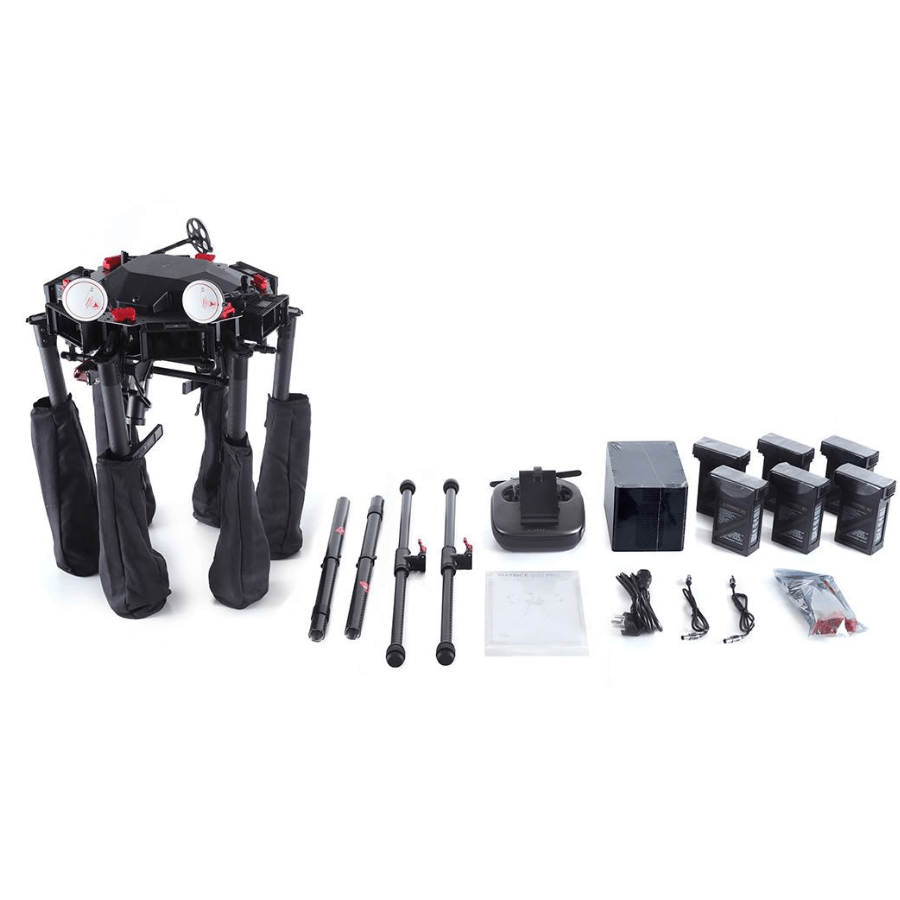

Modular Design for Easy Setup and Maintenance: The Matrice 600 Pro features a modular design, allowing for quick assembly, easy transportation, and straightforward maintenance. Its foldable arms and detachable landing gear make it convenient to carry and deploy.
Powerful Propulsion System for Heavy Lifting: The drone’s powerful propulsion system ensures stable flight even with heavy payloads. The six rotors provide added safety and performance, enabling the Matrice 600 Pro to handle demanding tasks like carrying large camera rigs or specialized equipment.
Intelligent Battery Management for Extended Flight Time: The DJI Matrice 600 Pro uses six intelligent batteries that automatically synchronize during flight, enhancing safety and extending flight times up to 38 minutes. The battery management system also ensures consistent power distribution and alerts users about battery status in real-time.
Comprehensive Safety Features: The drone includes multiple safety features like redundant IMUs and GNSS modules, ensuring stable and reliable performance. Additionally, it has self-adaptive landing gear that adjusts to uneven terrain, reducing the risk of damage during landings.
Customizable and Open SDK Support: The Matrice 600 Pro is compatible with DJI’s SDK, allowing developers to create custom applications and integrations tailored to specific needs. This flexibility is crucial for specialized industries that require unique functionalities.
Efficient Cooling System for Extended Operations: The drone is equipped with an efficient cooling system, ensuring that the motors and electronics remain cool even during extended or intense flights. This helps maintain optimal performance and prolongs the lifespan of the equipment.
Precise Positioning with D-RTK GNSS: The DJI Matrice 600 Pro supports D-RTK GNSS for centimeter-level accuracy in positioning and navigation. This is especially useful for applications like surveying, mapping, and agricultural monitoring where precision is critical.
Specifications
| Packaging Weight | 9.5 kg |
|---|---|
| Connectivity | 1 x HDMI 1 x SDI 1 x USB Type-A |
| Mobile Device Compatibility | Devices up to 6.7″ / 17.0 cm Wide |
| Battery Chemistry | Lithium-Ion Polymer (LiPo) |
| Transmitter Power Source | 13 dBm (5.8 G) 20 dBm (2.4 G) |
| Battery Capacity | 6000 mAh |
| Model | A3 Pro |
| Maximum Takeoff Weight | 34.2 lb / 15.5 kg |
| Maximum Horizontal Speed | 40 mph / 64.4 km/h |
| Maximum Ascent Speed | 16.4 ft/s / 5 m/s |
| Maximum Descent Speed | 9.8 ft/s / 3 m/s |
| Maximum Wind Resistance | 26.2 ft/s / 8 m/s |
| Flight Ceiling | 8202.1′ / 2500 m |
| Maximum Tilt Angle | 25° |
| Hovering Accuracy | ±1.6′ / 0.5 m Vertical with GPS ±4.9′ / 1.5 m Horizontal with GPS |
| Maximum Angular Velocity | 300°/s (Pitch) 150°/s (Yaw) |
| Vision System | None |
| Operating Frequency | 2.4 GHz (2.400 – 2.483) 5.8 GHz (5.725 – 5.825) |
| Maximum Operating Distance | 3.1 Miles / 5 km |
| Overall Dimensions | 65.7 x 59.8 x 28.6″ / 1668.0 x 1518.0 x 727.0 mm (Unfolded) 17.2 x 15.8 x 21.8″ / 437.0 x 402.0 x 553.0 mm (Folded) |
| Maximum Hover Time | 38 Minutes |
| Output Power | 9 W |
| Diagonal Size | 44.6″ / 1.1 m |
| Brand | DJI |
What is the flight time of the DJI Matrice 600 Pro?
The DJI Matrice 600 Pro offers a flight time of up to 38 minutes, depending on the payload and operating conditions.What payload capacity does the DJI Matrice 600 Pro support?
The Matrice 600 Pro can carry a maximum payload of up to 6 kg, making it suitable for carrying heavy cameras, sensors, and specialized equipment.What cameras are compatible with the DJI Matrice 600 Pro?
The Matrice 600 Pro is compatible with a wide range of cameras, including DJI’s Zenmuse series (X5, X7, Z30) and third-party cameras for specialized tasks.What is the range of the DJI Matrice 600 Pro?
With Lightbridge 2 HD transmission, the Matrice 600 Pro offers a control range of up to 5 kilometers, ensuring stable, long-range operations.What safety features does the DJI Matrice 600 Pro have?
The drone is equipped with multiple safety features like redundant IMUs, GNSS modules, and self-adaptive landing gear to ensure stable and safe flights.How long does it take to set up the DJI Matrice 600 Pro?
Thanks to its modular design, the Matrice 600 Pro can be assembled and ready for flight within minutes, making it quick to deploy in the field.What industries is the DJI Matrice 600 Pro suited for?
The Matrice 600 Pro is ideal for industries like aerial cinematography, surveying, industrial inspections, agriculture, and complex mapping operations.Can I customize the DJI Matrice 600 Pro for specific applications?
Yes, the Matrice 600 Pro supports DJI’s SDK, allowing developers to create custom applications and integrations for specialized missions.How is the battery performance managed on the DJI Matrice 600 Pro?
The Matrice 600 Pro uses six intelligent batteries that automatically synchronize, offering real-time monitoring and optimized power distribution for safe and extended flights.Is the DJI Matrice 600 Pro easy to transport?
Yes, the drone’s modular design includes foldable arms and detachable landing gear, making it easy to transport and store, even for complex field operations.
