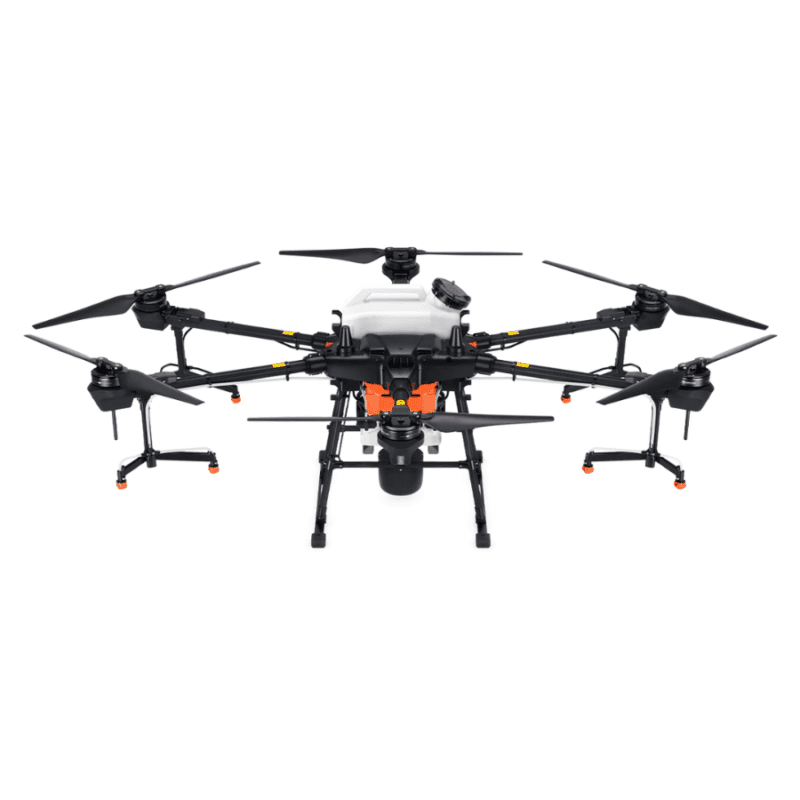

Quick After-sale SupportDJI Agras T20 Agriculture Drone
The DJI Agras T20 Agriculture Drone is a game-changer in contemporary agriculture, as it promotes modern farming. Precision and efficiency have hence been embodied in high-accuracy spraying, effective pest control, and monitoring of crops. Equipped with a robust 20-liter tank and 8-nozzle spraying system, the drone ensures uniform coverage and optimal pesticide usage. The safe and simple use of this drone is made possible through intelligent planning and AI-powered obstacle avoidance. In a word, large-scale farms can cut labor costs and enhance productivity with the help of the DJI Agras T20. Thus, healthier crops with higher yields will be much easier to achieve. Thus, consider the DJI Agras T20 Agriculture Drone an advanced and wise helper for agriculture.
Features of the DJI Agras T20 Agriculture Drone
The DJI Agras T20 Agriculture Drone is meant to modernize and make a difference in the agricultural sector. It comes with state-of-the-art features and technology to deliver accuracy, proficiency, and yield. Here is an analysis of some standout features of the DJI Agras T20 Agriculture Drone, indicating what it can do and how it helps.
Accurate Spraying: A main part of the DJI Agras T20 Agriculture Drone is its high-precision spraying ability. Fitted with a smart 8-nozzle spraying system, the drone gives even coverage over big spaces. The accurate spraying makes sure that pesticides and fertilizers are spread evenly͏ wasting less and improving crop health.
20-Liter Tank Capacity: Allow DJI Agras T20 Agriculture Drone to present to you a robust 20-liter tank that will make possible long periods of operation without frequent refills. Such capacity is more suited for large farms because it can cover wide areas in one flight efficiently. Easy fill and clean tank design aptly minimizes uptime.
AI-Powered Obstacle Avoidance: Safety and efficiency matter most in farm work. The DJI Agras T20 Agriculture Drone has AI-powered obstacle avoidance tech. This helps the drone spot and move around obstacles on its own, ensuring easy and safe work even in tricky places.
Smart Planning and Autonomous Flight: The Agras T20 provides smart planning. This gives the farmer the capability to pre-define routes and spraying patterns. The autonomous flight will then use that information to ensure the drone follows the planned path accurately. Coverage is optimized, and the need for human intervention is minimized. This function is very useful when working in large areas because manual control will be too tedious.
Effective Pest Management: The DJI Agras T20 Agriculture Drone performs well in effective pest management. Its accuracy spraying system ensures that chemicals are applied right to the needed areas, lowering the chance of excessive spraying and environmental contamination. That accurate application aids in properly controlling pests and diseases—resulting in better crops.
Seamless Crop Monitoring: Besides spraying, the Agras T20 can also do seamless crop monitoring. Advanced sensors and imaging technology on the drone provide real-time data on crop health, growth stages, and issues. This helps farmers decide on irrigation, fertilization, and pest management; in short, overall productivity is enhanced with informed decisions.
Cost-Effective and Labor-Saving: The DJI Agras T20 Agriculture Drone is meant to be cost-effective and labor-saving as automation in spraying and monitoring processes reduces the need for manual support. Hence, it reduces the cost related to labor drastically. Its efficiency can also be translated into more rational use of resources, thereby saving pesticides, fertilizers, and water as well.
Durability and Reliability: Constructed from high-quality materials, the DJI Agras T20 Agriculture Drone proves to be durable as well as reliable. It resists all challenges that the harsh agricultural environment poses, promising an assured long lifecycle with little to no maintenance practice. Strong build and parts that are dependable ensure that it becomes a trustworthy tool for farmers.
User-Friendly Interface: It is intuitive to make farmer control and monitor the drone by a specific app and receive real-time feedback and status information. Using simple controls and clear displays, even people without much technical knowledge can have access.
Specifications
Agras T20
FLIGHT PARAMETERS
| Total Weight (Excluding battery) | 21.1 kg |
|---|---|
| Standard Takeoff Weight | 42.6 kg |
| Max Takeoff Weight | 47.5 kg (at sea level) |
| Max Thrust-Weight Ratio | 1.70 (with a takeoff weight of 47.5 kg) |
| Hovering Accuracy (With a strong GNSS signal) | D-RTK enabled: Horizontal: ±10 cm, Vertical: ±10 cmD-RTK disabled: Horizontal: ±0.6 m, Vertical: ±0.3 m (Radar module enabled: ±0.1 m) |
| RTK/ GNSS Operating Frequency | RTK: GPS L1/L2, GLONASS F1/F2, BeiDou B1/B2, Galileo E1/E5 [1]GNSS: GPS L1, GLONASS F1, Galileo E1 [1] |
| Max Power Consumption | 8300 W |
| Hovering Power Consumption | 6200 W (with a takeoff weight of 47.5 kg) |
| Hovering Time[2] | 15 min (takeoff weight of 27.5 kg with a 18000 mAh battery)10 min (takeoff weight of 42.6 kg with a 18000 mAh battery) |
| Max Pitch Angle | 15° |
| Max Operating Speed | 7 m/s |
| Max Flying Speed | 10 m/s (with a strong GNSS signal) |
| Max Wind Resistance | 8 m/s |
| Max Service Ceiling Above Sea Level | 2000 m |
| Recommended Operating Temperature | 0° to 40°C |
PROPULSION SYSTEM – MOTOR
| Stator Size | 100×15 mm |
|---|---|
| Weight | 666 g |
PROPULSION SYSTEM – PROPELLERS
| Diameter × Pitch | 33×9 in |
|---|
FPV CAMERA
| FOV | Horizontal: 98°, Vertical: 78° |
|---|---|
| Resolution | 1280×960 30fps |
SPRAYING SYSTEM
| Spray Tank Volume | Rated: 15.1 L, Full: 20 L |
|---|---|
| Operating Payload | Rated:15.1 kg, Full:20 kg |
SPRAYING SYSTEM – FLOW METER
| Measurement Range | 0.25-20 L/min |
|---|---|
| Error | ＜±2% |
| Measurable Liquid | Conductivity > 50 μS/cm(Liquids such as water or pesticides that contain water) |
T20 Intelligent Flight Battery
| Model | AB3-18000mAh-51.8V |
|---|---|
| Weight | 6.4 kg (approximately) |
| Discharge Rate | 9 C |
| IP Rating | IP54 |
| Capacity | 18000 mAh |
| Voltage | 51.8 V |
REMOTE CONTROLLER – INTERNAL BATTERY
| Battery Type | 18650 Li-ion (5000 mAh @ 7.2 V) |
|---|---|
| Working Time | 2 hours |
| Charging Time | 2.5 hours (using a standard USB power adapter rated 12 V/2 A) |
| Power Supply Current/Voltage (USB-A port) | 5 V/ 1.5 A |
| Model | WB37-4920mAh-7.6V |
REMOTE CONTROLLER – INTELLIGENT BATTERY CHARGING HUB
| Model | WCH2 |
|---|---|
| Input Voltage | 17.3-26.2 V |
| Output Voltage and Current | 8.7 V, 6 A |
| Operating Temperature | 5° to 40°C |
| Notes | 1. Support for Galileo is coming soon. 2. Testing at sea level, wind speed less than 3 m/s. 3. The effective radar range varies depending on the material, position, shape, and other properties of the obstacle. 4. To comply with local laws and regulations, this frequency is not available in some countries or regions. |
|---|---|
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. |
AIRFRAME
| Max Diagonal Wheelbase | 1883 mm |
|---|---|
| Dimensions | 2509×2213×732 mm (Arms and propellers unfolded)1795×1510×732 mm (Arms unfolded and propellers folded)1100×570×732 mm (Arms and propellers folded) |
PROPULSION SYSTEM
| KV | 75 rpm/v |
|---|---|
| Max Thrust | 13.5 kg/rotor |
| Max Power | 2400 W/rotor |
| Weight (Single propeller) | 90 g |
PROPULSION SYSTEM – ESC
| Max Working Current (Continuous) | 40 A |
|---|---|
| Max Working Voltage | 58.8 V(14S LiPo) |
FPV SPOTLIGHT
| Max Brightness | 12 lux at 5 m of direct light |
|---|
SPRAYING SYSTEM – NOZZLE
| Nozzle Model | SX11001VS(standard)SX110015VS(optional)XR11002VS(optional) |
|---|---|
| Quantity | 8 |
| Max Spray Rate | SX11001VS: 3.6 L/minSX110015VS: 4.8L/minXR11002VS: 6 L/min |
| Droplet Size | SX11001VS: 130-250 μmSX110015VS: 170-265 μmXR11002VS: 190-300 μm(related to the actual working environment, spraying flow, etc.) |
| Spray Width | 4-7 m (8 nozzles, at a height of 1.5 – 3 m above crops) |
HIGH PRECISION RADAR MODULE
| Model | RD2428R |
|---|---|
| Operating Frequency | CE (Europe)/(United States): 24.00 GHz-24.25 GHzMIC (Japan)/KCC (Korea): 24.05 GHz-24.25 GHz |
| Power Consumption | 18W |
| EIRP | MIC/KCC/CE /FCC: <20 dBm |
| Altitude Detection & Terrain Follow[3] | Altitude detection range: 1-30 mStabilization working range:1.5-15 mMaximum slope of hill mode: 35° |
| Obstacle Avoidance System[3] | Altitude detection range: 1.5-30 mFOV: Horizontal: 360°, Vertical: ±15°Condition: Relative altitude higher than 1.5 m, operation speed lower than 7 m/sSafe distance: 2.5m (distance between the propeller tip and the obstacle after the aircraft stops)Obstacle-avoiding direction: Omnidirectional obstacle sensing operates horizontally and covers 360° |
| IP Rating | IP67 |
REMOTE CONTROLLER
| Model | RM500-AG |
|---|---|
| OcuSync 2.0 Operating Frequency[4] | 2.4000-2.4835 GHz5.725-5.850 GHz |
| OcuSync 2.0 Effictive Transmission Distance(Unobstructed, free of interference) | SRRC/MIC/KCC/CE: 3 kmNCC/FCC: 5km (Operation height: 2.5 m) |
| OcuSync 2.0 Transmission Power (EIRP) | 2.4 GHzSRRC/CE/MIC/KCC: 18.5 dBm,FCC: 25.5 dBm;5.8 GHzSRRC/FCC: 25.5 dBm |
| WIFI Protocol | Wi-Fi Direct, Wireless Display, 802.11a/g/n/ac, and Wi-Fi with 2×2 MIMO is supported |
| Wi-Fi Operation Frequency Range[4] | 2.4000-2.4835 GHz5.150-5.250 GHz5.725-5.850 GHz |
| WIFI Transmission Power (EIRP) | 2.4 GHzSRRC/CE: 18.5 dBm; FCC/MIC/KCC: 20.5 dBm; 5.2 GHzSRRC/FCC/CE/MIC: 14 dBm; KCC:10 dBm; 5.8 GHzSRRC/FCC: 18 dBm; CE/KCC: 12 dBm |
| Bluetooth Protocol | Bluetooth 4.2 |
| Bluetooth Operating Frequency | 2.4000-2.4835 GHz |
| Bluetooth Transmission Power (EIRP) | SRRC/MIC/FCC/CE/KCC: 6.5 dBm |
| GNSS | GPS+GLONASS |
| Display Device | 5.5-inch screen1920×1090 pixelsBrightness: 1000 cd/m²Android System |
| Random Access Memory, RAM | 4GB LPDDR4 |
| Storage Capacity | ROM 32GB + microSD, supports microSD cards with a capacity of up to 128 GB and R/W speed up to UHS-I Speed Grade 3 |
| HDMI | HDMI 1.4 |
| Supported Aircraft | Agras T20 |
| Power Consumption | 18 W |
| Operation Temperature Range | -10° to 40°C |
| Storage Temperature Range | ＜ 1 month: -30° to 60°C1-3 months: -30° to 45°C3-6 months: -30° to 35°C＞ 6 months: -30° to 25°C(Built-in battery power 40% to 60%) |
| Charging Temperature | 5° to 40°C |
REMOTE CONTROLLER – INTELLIGENT BATTERY
| Charge Type | Supports USB power fast charge adapters rated 12 V/2 A |
|---|---|
| Battery Type | 2S LiPo |
| Capacity | 4920 mAh |
| Voltage | 7.6 V |
| Energy | 37.39 Wh |
| Charging Temperature | 5° to 40°C |
| Model | 2 hours |
REMOTE CONTROLLER – INTELLIGENT BATTERY CHARGING HUB POWER ADAPTER
| Model | A14-057N1A |
|---|---|
| Input Voltage | 100 – 240 V, 50/60 Hz |
| Output Voltage | 17.4 V |
| Rated Power | 57 W |
What is the tank capacity of the DJI Agras T20 Agriculture Drone? The DJI Agras T20 Agriculture Drone features a robust 20-liter tank capacity, allowing for extended operation without frequent refilling. This large capacity is ideal for extensive farms, enabling efficient spraying over vast areas in a single flight.
How does the DJI Agras T20 ensure precision spraying? The DJI Agras T20 Agriculture Drone is equipped with an advanced 8-nozzle spraying system. This system delivers uniform coverage across large areas, ensuring that pesticides and fertilizers are distributed evenly, reducing waste and enhancing crop health.
What safety features does the DJI Agras T20 have? The DJI Agras T20 Agriculture Drone includes AI-powered obstacle avoidance technology. This feature enables the drone to detect and navigate around obstacles automatically, ensuring smooth and safe operation even in complex environments.
Can the DJI Agras T20 operate autonomously? Yes, the Agras T20 offers smart planning capabilities, allowing farmers to pre-plan routes and spraying patterns. The autonomous flight feature ensures that the drone follows the planned path accurately, optimizing coverage and minimizing human intervention.
How does the DJI Agras T20 help with pest control? The DJI Agras T20 Agriculture Drone excels in efficient pest control through its precision spraying system. It ensures that pesticides are applied directly to targeted areas, reducing the risk of over-spraying and environmental contamination, leading to healthier crops.
Is the DJI Agras T20 suitable for crop monitoring? Yes, in addition to spraying, the Agras T20 is capable of seamless crop monitoring. Its advanced sensors and imaging technology provide real-time data on crop health, growth stages, and potential issues, helping farmers make informed decisions about irrigation, fertilization, and pest management.
How does the DJI Agras T20 save on labor costs? By automating spraying and monitoring tasks, the DJI Agras T20 Agriculture Drone reduces the need for manual labor, significantly cutting down on labor costs. Its efficiency also translates to better resource utilization, saving on pesticides, fertilizers, and water.
Is the DJI Agras T20 durable and reliable? Yes, the DJI Agras T20 Agriculture Drone is built with high-quality materials, making it both durable and reliable. It is designed to withstand harsh agricultural environments, ensuring long-term performance and minimal maintenance.
How user-friendly is the DJI Agras T20? The Agras T20 is designed with a user-friendly interface. Farmers can easily control and monitor the drone using a dedicated app, which provides real-time feedback and status updates. The intuitive controls and clear display make it accessible even for users with limited technical knowledge.
What makes the DJI Agras T20 a cost-effective solution for farmers? The DJI Agras T20 Agriculture Drone is a cost-effective solution because it reduces labor costs through automation, optimizes resource utilization, and enhances overall productivity. Its high-precision spraying and seamless crop monitoring ensure efficient farming practices, leading to higher yields and better crop health.
