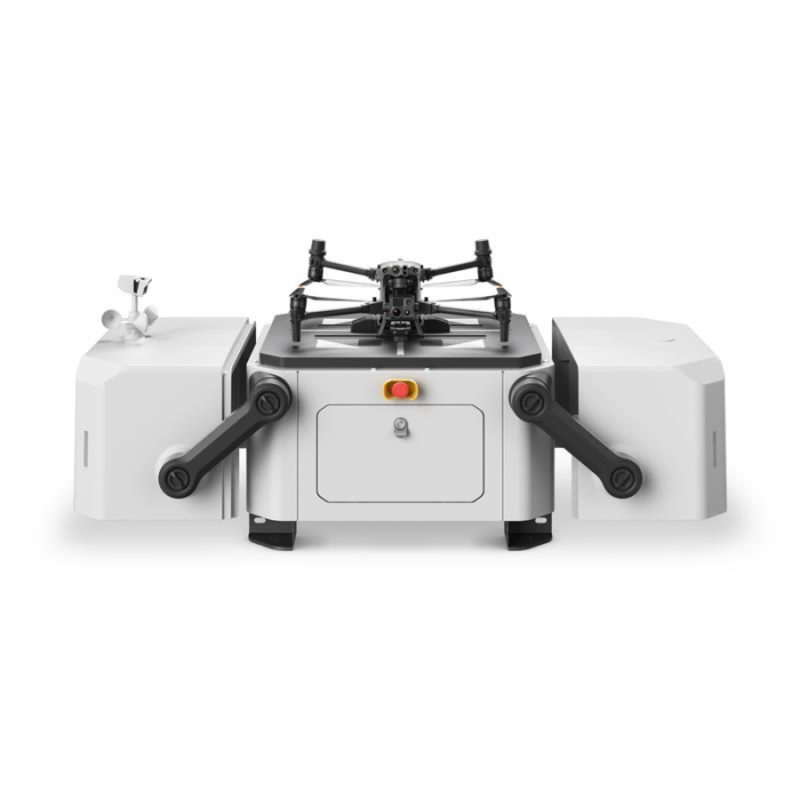

DJI M30 Dock

The DJI M30 Dock is an advanced, autonomous drone docking station designed to revolutionize automated drone operations. Perfect for industries like agriculture, security, and infrastructure inspection, this cutting-edge dock allows for fully automated takeoff, landing, and recharging, enabling 24/7 drone missions with minimal human intervention. Built to withstand harsh weather conditions with its IP55 rating, the DJI M30 Dock ensures reliable performance in any environment. Its compact design allows for rapid deployment, while the intelligent charging system keeps your DJI M30 drone ready for continuous use. With robust security features, including real-time monitoring and data encryption, the DJI M30 Dock offers a secure and efficient solution for optimizing drone operations.

DJI M30 Dock

Fully Autonomous Drone Operations: The DJI M30 Dock enables fully autonomous drone missions, allowing the M30 series drones to take off, land, and recharge without any human intervention. This automation is particularly beneficial for routine inspections, surveillance, and monitoring tasks, where continuous and repetitive operations are required.

Fast Charging and Efficient Power Management: Equipped with advanced power management features, the DJI M30 Dock ensures that your drones are always ready for the next mission. The dock provides rapid charging, allowing the M30 drone to be fully recharged and ready for deployment in a short amount of time. This efficiency is crucial for industries that require high-frequency operations.

Weatherproof Design: The DJI M30 Dock is designed to withstand harsh weather conditions, ensuring reliable performance in various environments. With its IP55 rating, the dock is resistant to dust and water, making it suitable for outdoor installations in challenging conditions.

Intelligent Flight Planning and Data Management: The DJI M30 Dock comes with intelligent flight planning capabilities, allowing operators to pre-program missions and manage data efficiently. The dock is integrated with DJI’s cloud-based software, enabling real-time data transmission and storage. This feature is essential for industries such as agriculture, energy, and infrastructure, where accurate data collection and analysis are critical.

Remote Monitoring and Control: Operators can monitor and control the DJI M30 Dock and the connected drones remotely via a user-friendly interface. This remote access is vital for applications like security and surveillance, where quick response times are necessary.

Specifications

General

  • Product Name

  • DJI Dock

  • Total Weight

  • 105 kg (not including aircraft weight)

  • Dimensions

  • Dock Cover Opened: 1675×885×735 mm (L×W×H)
    Dock Cover Closed: 800×885×1065 mm (L×W×H)

  • Input Voltage

  • 100-240 VAC, 50/60 Hz

  • Max Input Power

  • 1,500 W

  • Operating Temperature

  • -35 to 50° C (-31 to 122° F)

  • Ingress Protection Rating

  • IP55

  • Number of Drones Accommodated

  • 1

  • Max Allowable Landing Wind Speed

  • 12 m/s

  • Max Operating Altitude

  • 4,000 m

  • Max Operating Radius

  • 7,000 m

  • Receiving Frequency of RTK Base Station Satellite

  • Simultaneously receive:
    GPS: L1 C/A, L2
    BeiDou2: B1l, B2l, B3l
    BeiDou3:B1l, B3l
    GLONASS:L1, L2
    Galileo: E1, E5B

  • Positioning Accuracy of RTK Base Station

  • Horizontal: 1 cm+1 ppm (RMS)
    Vertical: 2 cm+1 ppm (RMS)

Charging Performance

  • Output Voltage

  • 18 to 26.1 V

  • Charging Time

  • 25 minutes
    Note: This is if the ambient temperature is 25°C (77° F), and the aircraft is charged from 10% to 90%.

Video Transmission

  • Video Transmission System

  • O3 Enterprise

  • Operating Frequency

  • 2.4000-2.4835 GHz
    5.725-5.850 GHz

  • Antennas

  • 4 antennas, 2T4R

  • Transmitter Power (EIRP)

  • 2.4 GHz: <33 dBm (FCC); <20 dBm (CE/SRRC/MIC)
    5.8 GHz： <33 dBm (FCC); <14 dBm (CE); <23 dBm (SRRC)

Air Conditioning System

  • Operating Voltage

  • 48 VDC

  • Air Conditioning Type

  • TEC Air Conditioning

Backup Battery

  • Battery Capacity

  • 12 Ah

  • Output Voltage

  • 24 V

  • Battery Type

  • Lead-acid Battery

  • Backup Battery Life

  • > 5 hours

Network Access

  • Ethernet Access

  • 10/100/1000Mbps Adaptive Ethernet port

Sensor

  • Wind Speed Sensor

  • Supported

  • Rainfall Sensor

  • Supported

  • Ambient Temperature Sensor

  • Supported

  • Water Immersion Sensor

  • Supported

  • In-cabin Temperature Sensor

  • Supported

  • In-cabin Humidity Sensor

  • Supported

  • Vibration Sensor

  • Supported

Integrated Security Camera (On Cover)

  • Resolution

  • 1920×1080

  • Field of View (FOV)

  • 180°

  • Auxiliary Light

  • Supported, Auxiliary White Light

Lightning Protection

  • AC Power Port

  • 40 kA (8/20μs waveform), meets EN/IEC 61643-11 TYPE 2 protection level requirements

  • Ethernet Port

  • 1.5 kA (8/20μs waveform), meets EN/IEC 61643-21 CATEGORY C protection level requirements

Supported Software

  • Applications

  • DJI Pilot 2 (connects to DJI Dock via DJI RC Plus for configuration and commissioning)

  • Cloud Platform

  • DJI FlightHub 2
    3rd Party Platforms through DJI Cloud API
