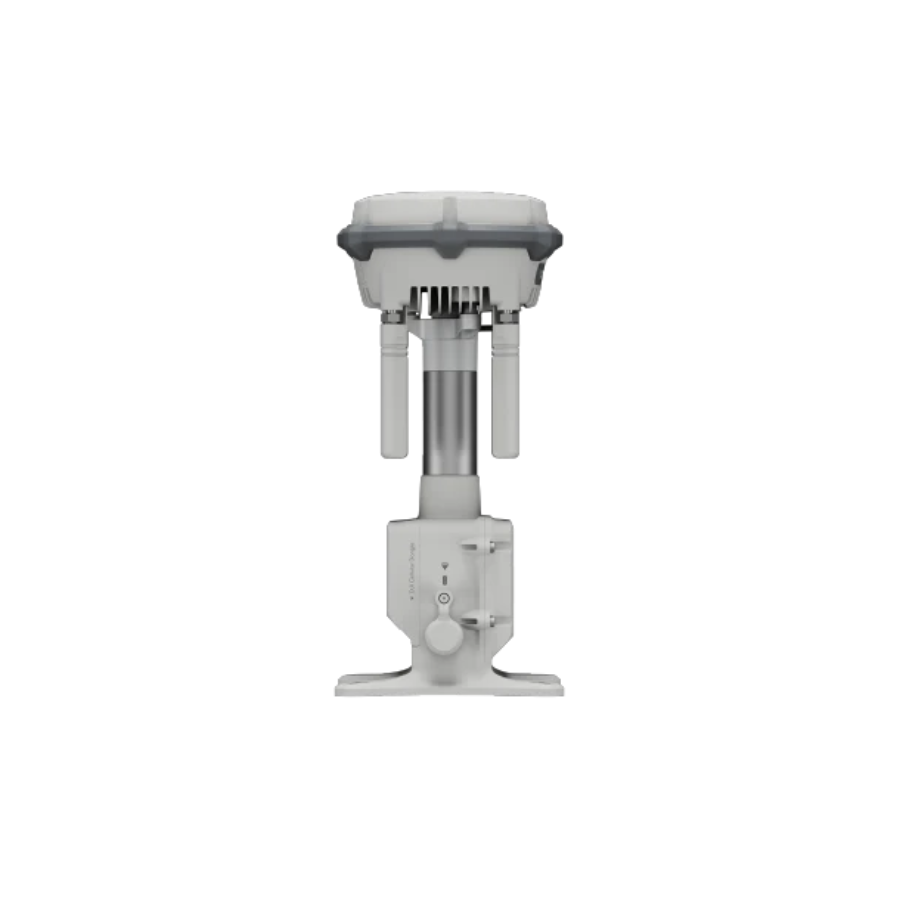

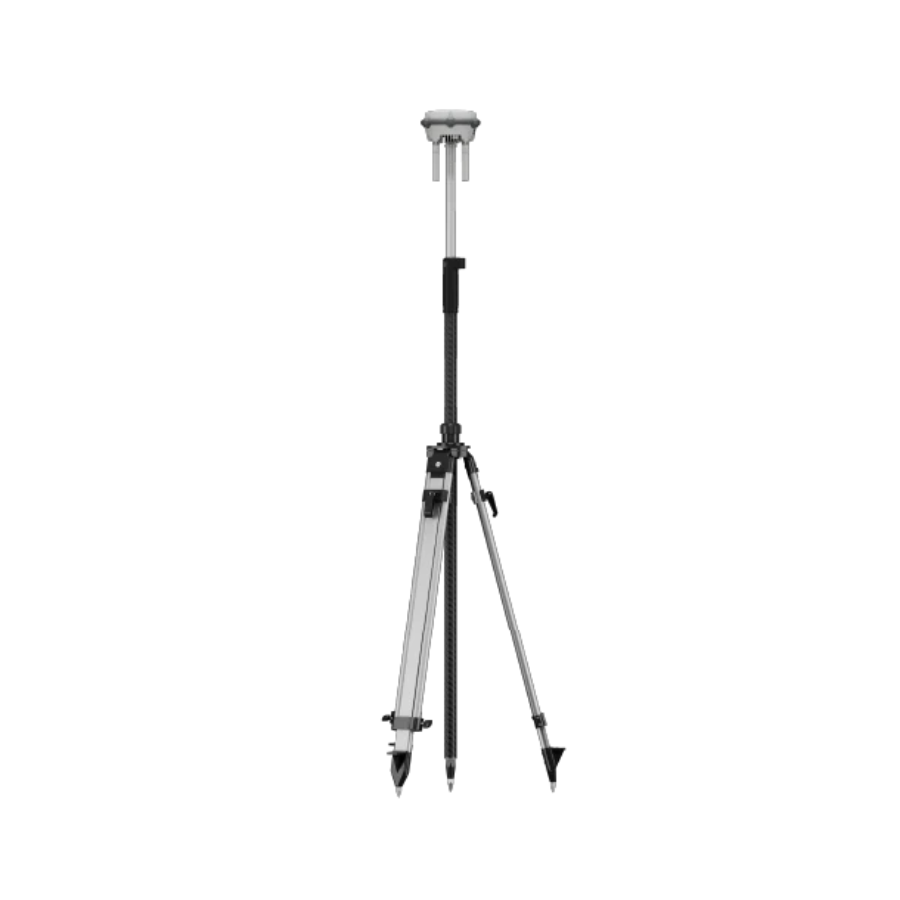

Quick After-sale SupportD-RTK 3 High-Precision GNSS Base Station for Accurate RTK Positioning
The D-RTK 3 Base Station delivers centimeter-level positioning accuracy for drones and mobile platforms. Supporting all major satellite navigation systems, it ensures enhanced signal stability and precise data transmission in any environment. Designed for seamless integration with DJI enterprise drones, it offers real-time differential corrections, optimizing workflows in surveying, mapping, and inspections. With rugged construction and IP65-rated durability, the D-RTK 3 performs reliably even in harsh field conditions, making it the ultimate GNSS solution for professionals demanding uncompromising accuracy and performance.
Centimeter-Level Accuracy: Achieve unparalleled precision with real-time kinematic (RTK) positioning, offering centimeter-level accuracy essential for demanding surveying, inspection, and mapping operations.
Multi-GNSS Support: Equipped to receive signals from GPS, GLONASS, Galileo, and BeiDou satellite systems simultaneously, ensuring enhanced signal stability and coverage even in remote or obstructed environments.
Seamless Integration: Fully compatible with DJI enterprise drones such as the Matrice 300 RTK, Matrice 350 RTK, and Mavic 3 Enterprise Series, enabling smooth and efficient workflow integration with plug-and-play connectivity.
Robust Build: Designed for tough job sites, the D-RTK 3 features an IP65-rated weatherproof and dustproof enclosure, built to withstand rain, wind, and rugged terrain during outdoor operations.
Versatile Deployment: Functions as a stand-alone RTK base station or connects to an NTRIP network, providing flexible deployment options for both field and urban environments.
User-Friendly Interface: Simplifies operation with intuitive configuration and control via the DJI Pilot 2 app or compatible controllers, reducing setup time and boosting operational efficiency.

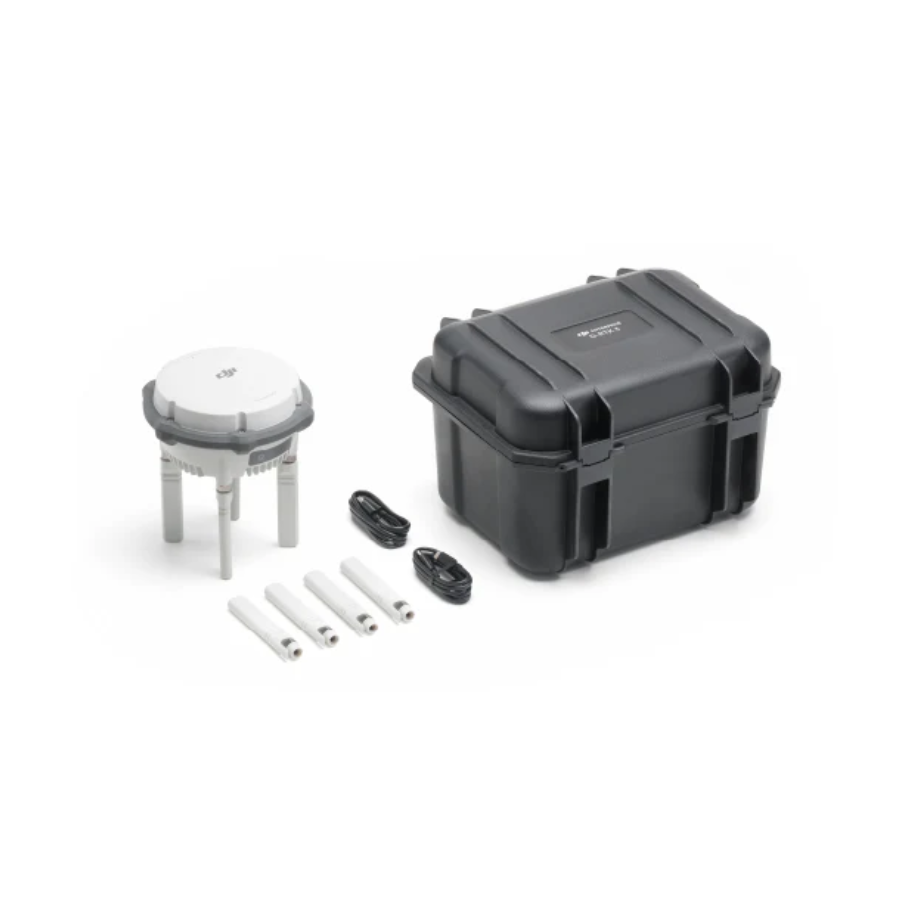

In The Box
D-RTK 3 Multifunctional Station × 1
Spare OcuSync Directional Antennas × 4
USB-A to USB-C Cable× 1
Specifications
GNSS Frequency
GPS: L1C/A, L2C, L5
BDS: B1I, B2I, B3I, B1C, B2a, B2b
Galileo: E1, E5a, E5b, E6
GLONASS: L1, L2
QZSS: L1C/A, L2C, L5
L-Band
Rover Station Mode Accuracy
Static Measurement
Horizontal: 0.8 cm + 1 ppm (RMS)
Vertical: 1.5 cm + 1 ppm (RMS)
Tilt Measurement
Angle Range: 0°to 60°
Horizontal: 8 mm + 0.7 mm/° tilt (accuracy <2 cm within 30°)
Max Transmission Distance (in Relay Station Mode, unobstructed, free of interference)
FCC:
15 km between the aircraft and the relay station
1 km between the relay station and the remote controller
SRRC:
12 km between the aircraft and the relay station
1 km between the relay station and the remote controller
CE:
8 km between the aircraft and the relay station
300 m between the relay station and the remote controller
Protection Rating: IP67 (station only)
Diameter: 163 × 89 mm (without OcuSync Directional Antennas)
Weight: 1.26 kg
