MagNIMBUS atomic total-field magnetometer
Ultra-sensitive QuSpin QTFM Gen-2 atomic magnetometer for UXO, utility and mineral surveys.
Ultra-sensitive airborne integrated magnetometer system powered by QuSpin QTFM Gen-2 atomic total-field magnetometer sensors.

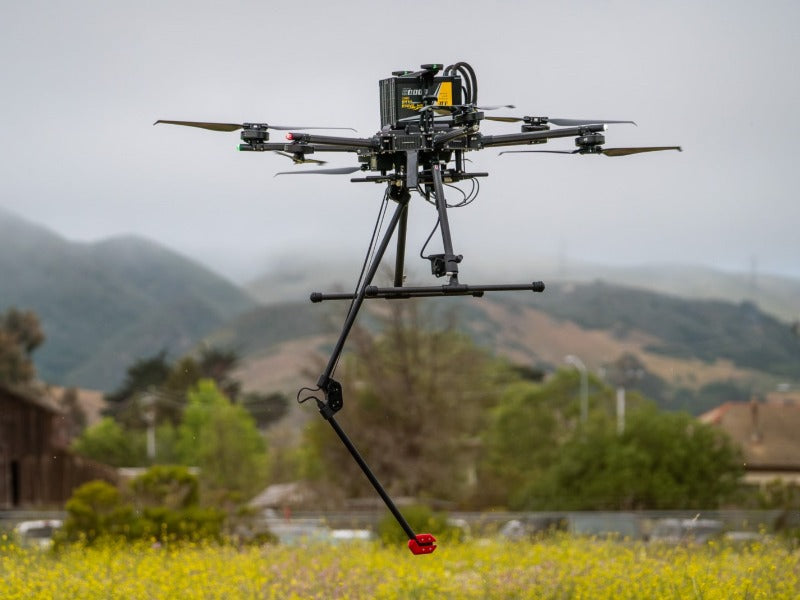

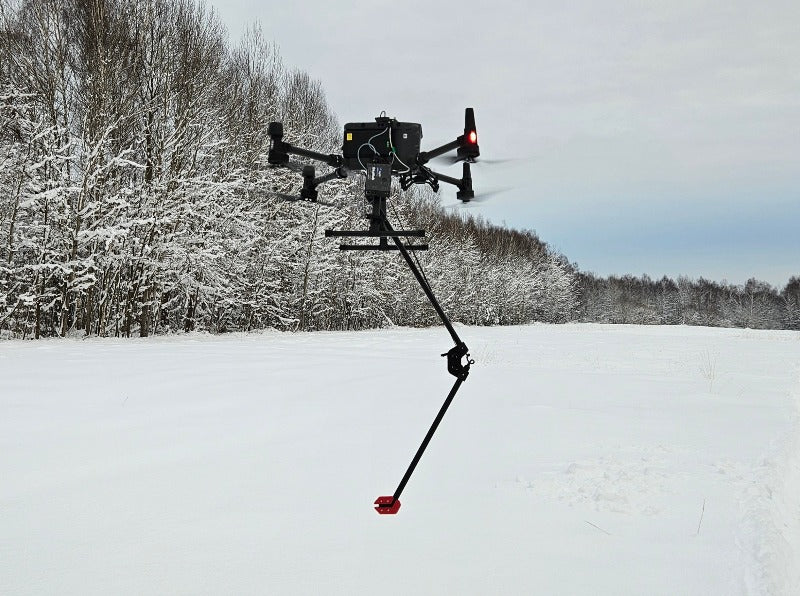

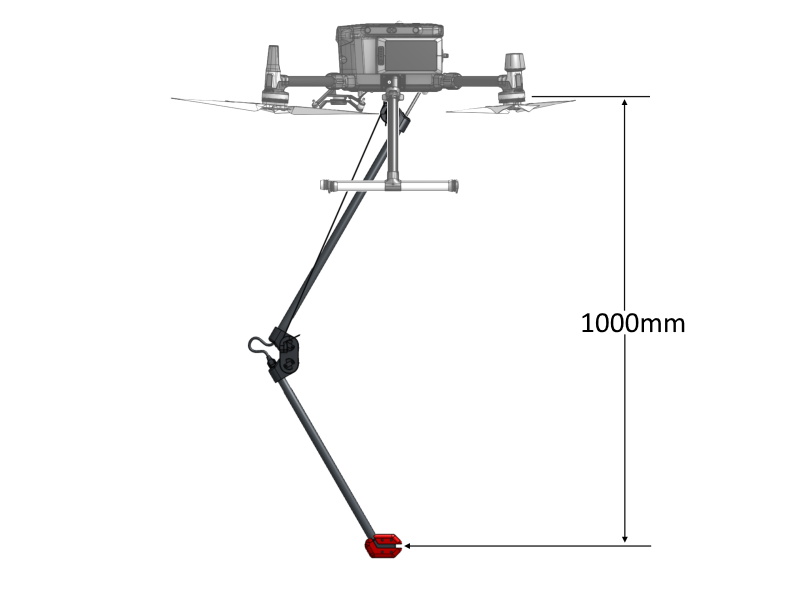

A unique system design allows flight with extremely low surface-to-sensor clearance, down to just a few dozen centimetres — and if the sensor touches the ground or vegetation, it will not cause the drone to crash, which matters for searching small UXO items over vegetated fields.

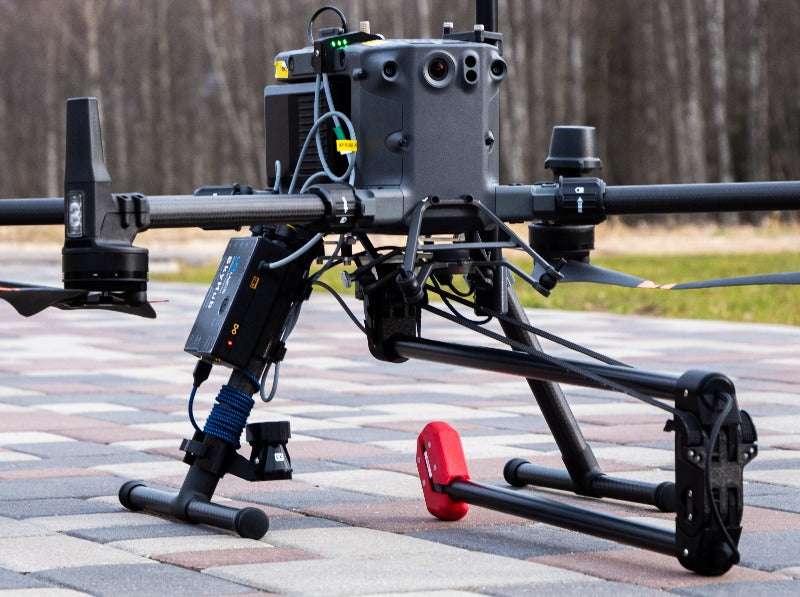

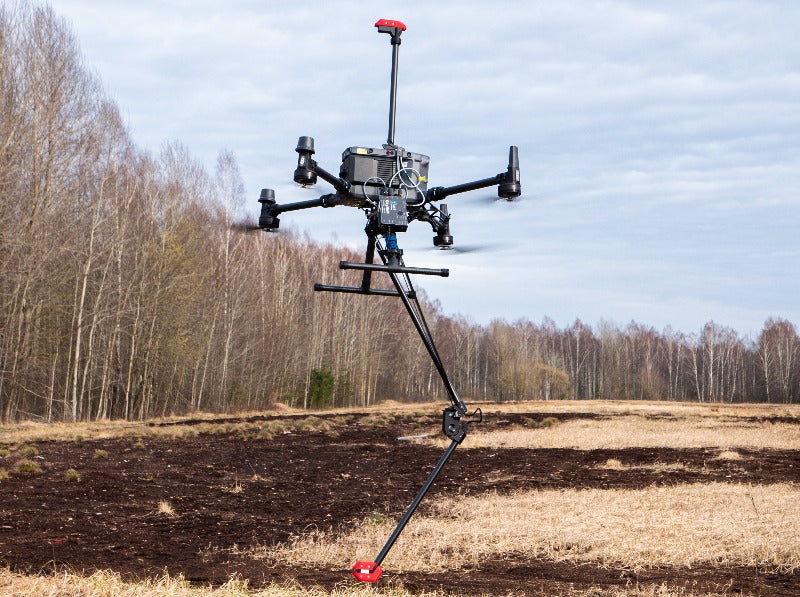

A self-foldable sensor mount allows easy take-off and landing without excess operator-qualification requirements, unlike sensors flown on suspension cords. MagNIMBUS is available in a gradiometer configuration (simplifies processing, no base station needed, and enables surveys near EM field sources like powerlines) or a single-sensor configuration with a foldable mount.
Technical
| Sensor designation | QuSpin QTFM Gen-2 |
| Number of sensors | 1 (standard) · 2 (vertical gradiometer) |
| Sensor technology | Laser-pumped rubidium total field |
| Sensor sensitivity | Very high |
| Sampling rate | Up to 500 Hz (scalar mode, user-configurable) |
| Dynamic range | 1,000 to 150,000 nT |
| Live data stream to ground station | Yes |

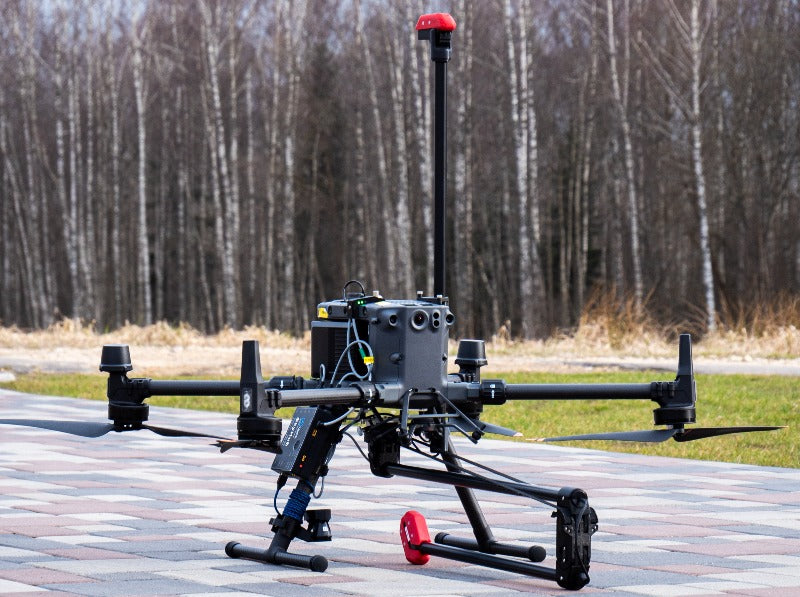

| Design | Foldable mount + upper mast for gradiometer configuration |
Environmental
| Operating temperature | -15°C to 55°C |
| Ingress protection | IP52 |
| Humidity | Non-condensing |
Mechanical
| Weight | 0.7kg (standard) · 1.2kg (gradiometer) |
| Size | Folded: 640×180×75mm · Unfolded: 1100×310×75mm |
What's in the kit
- MagNIMBUS magnetometer
- Upper mast with QuSpin sensor (gradiometer configuration)
- Transport hard case
