Geolux RSS-2-AB water surface velocity measurement kit
K-band radar kit for contactless surface-flow-velocity measurement from a drone, streaming readings ten times per second via SkyHub.

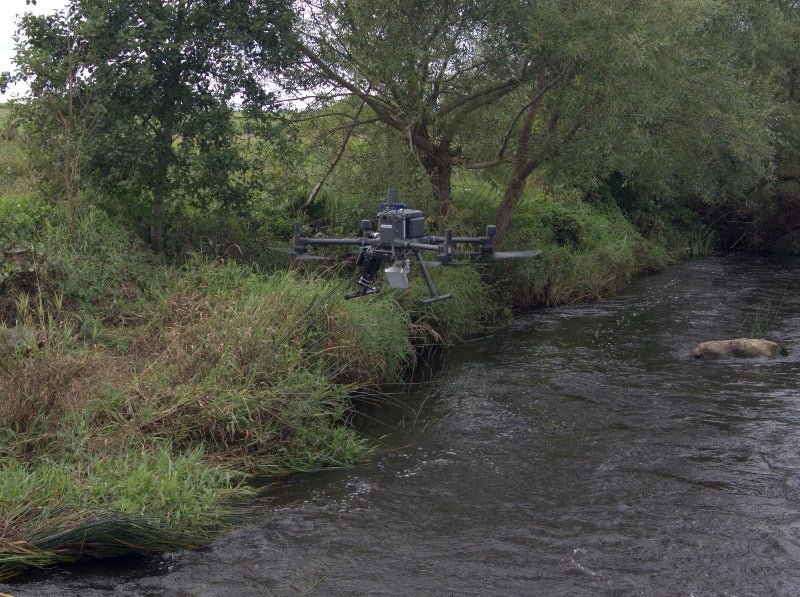

This integrated system uses a surface velocity radar to provide contactless measurement of flow velocity, operating in K-band (24.075–24.175 GHz) and delivering flow-speed readings ten times per second over serial RS-232. Flying the sensor on a UAV makes it possible to take measurements in hard-to-reach places with no existing infrastructure — the entire process is automated via the SkyHub onboard computer and UgCS mission planning software.

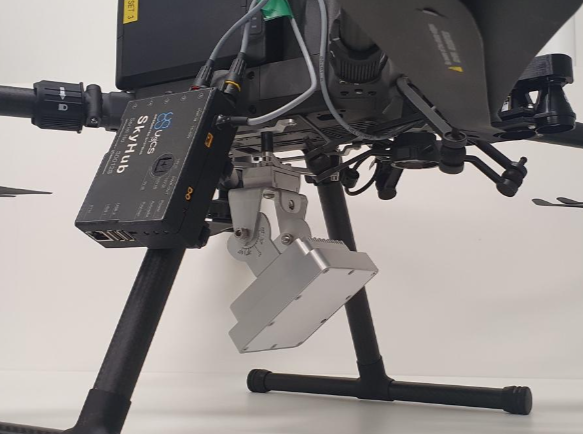

The Geolux RSS-2-AB is the airborne version of the ground-based Geolux RSS-2-3000w sensor, and requires the SkyHub onboard computer to log data. SkyHub integration lets it be flown on various drones, including the DJI M350/M300 RTK and Pixhawk-based platforms.
Technical
| Radar band | K-band, 24.075 GHz to 24.175 GHz |
| Reading rate | 10 readings/second |
| Interface | Serial RS-232 |
| Requires | SkyHub onboard computer for data logging |
| Compatible drones | DJI M350/M300 RTK, Pixhawk-based drones |
Certifications
| Standards | EN 60950-1, EN 62311:2008, Draft EN 301 489-3 V2.1.1, Draft EN 301 489-1 V2.2.0, EN 61000-6-3, EN 61000-6-2:2017, EN 300 440 V2.1.1:2017, EN 60529:2000+A1+A2 |
What's in the kit

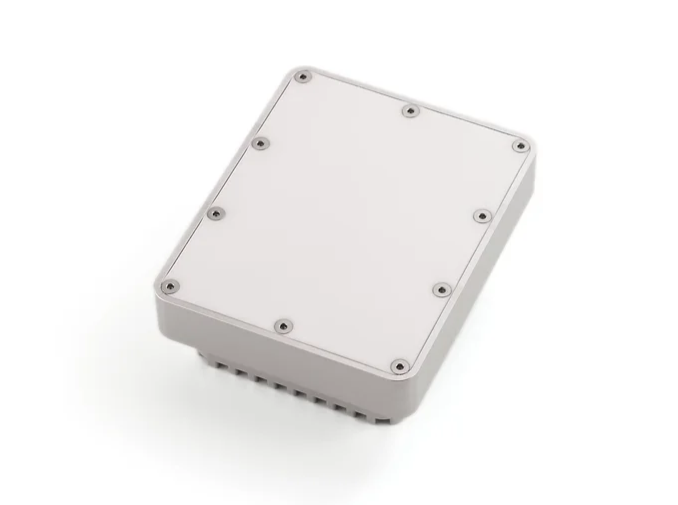

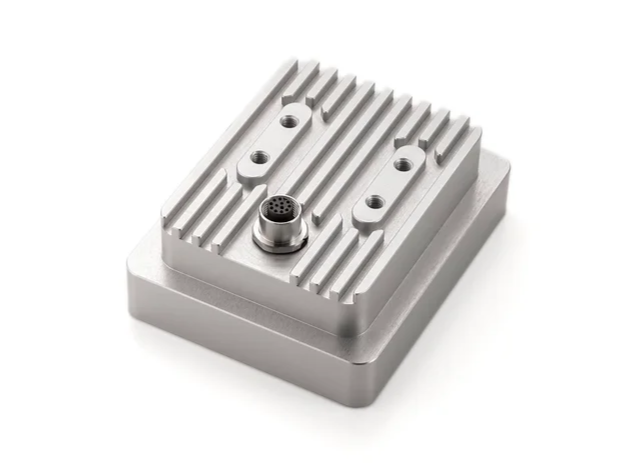

- Geolux RSS-2-AB sensor
- Mountings
- Cable to connect the sensor to SkyHub onboard computer
- Software for sensor data logging
