SPH Engineering · SKU IS-VEMOS-AIR
Ebinger VEMOS AIR Mk2 metal detector
EMI geophysical sensor for conductive-material detection — successor to the Ebinger UPEX 740M.
Price on request
An electromagnetic impulse (EMI) geophysical instrument for conductive-material detection. The Ebinger VEMOS AIR Mk2 is the successor to the Ebinger UPEX 740M "big loop" metal detector, heavily modified to suit mid-sized drones.
VEMOS AIR detects non-ferrous conductors and smaller objects than magnetometers typically can, though it can't detect deep (>2m) targets or landmines with minimal metal content.
Archaeological site surveysUtility detection & mappingUXO detectionEnvironmental contamination assessmentForensic investigationSecurity operations

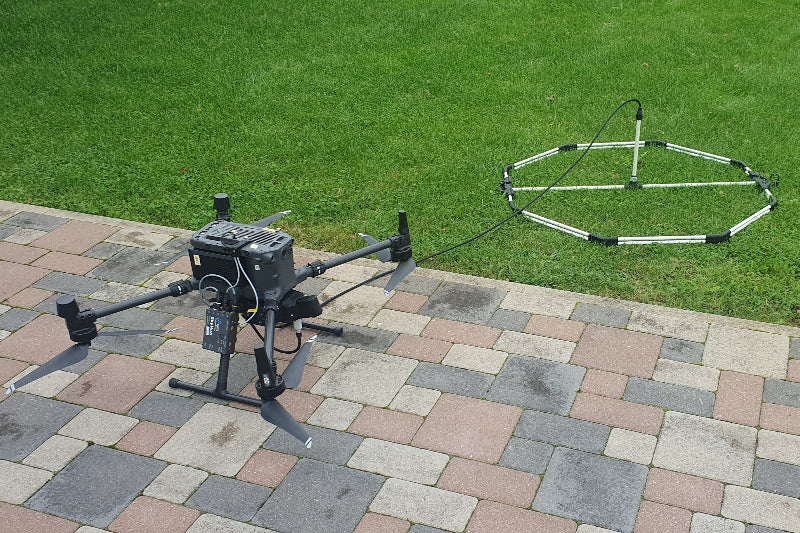

Recommended drones
| Platforms | DJI M400 · DJI M350/M300 RTK · InspiredFlight IF1200A or similar |
Mechanical
| Sensor weight | 3.2kg |
| Transportation case size | 25 × 145 × 75cm |
| Transportation weight | 28kg (32kg boxed, as shipped) |

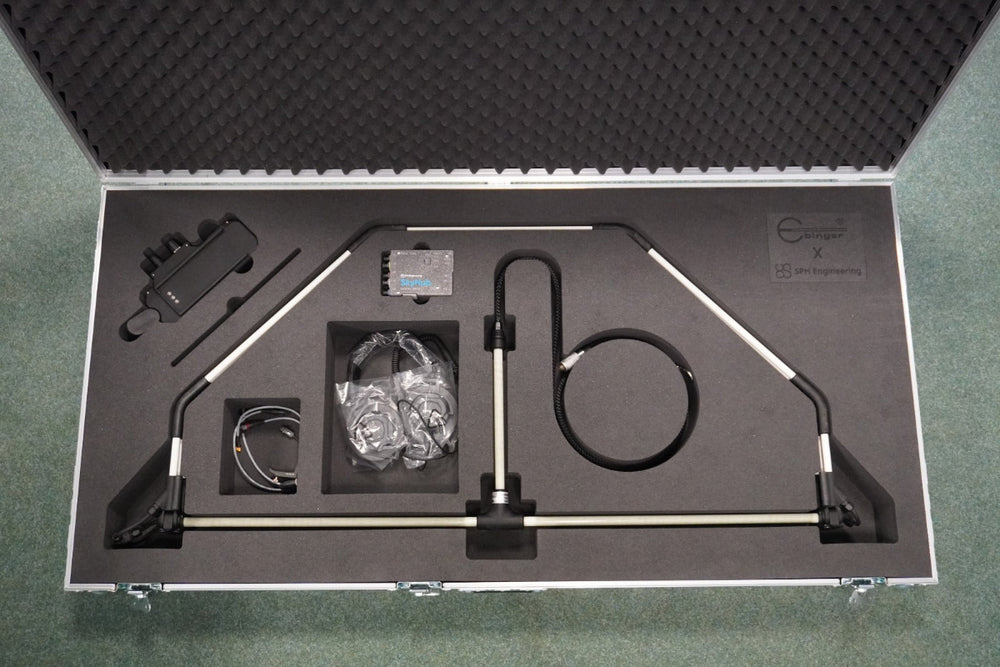

What's in the kit
- Electronics module

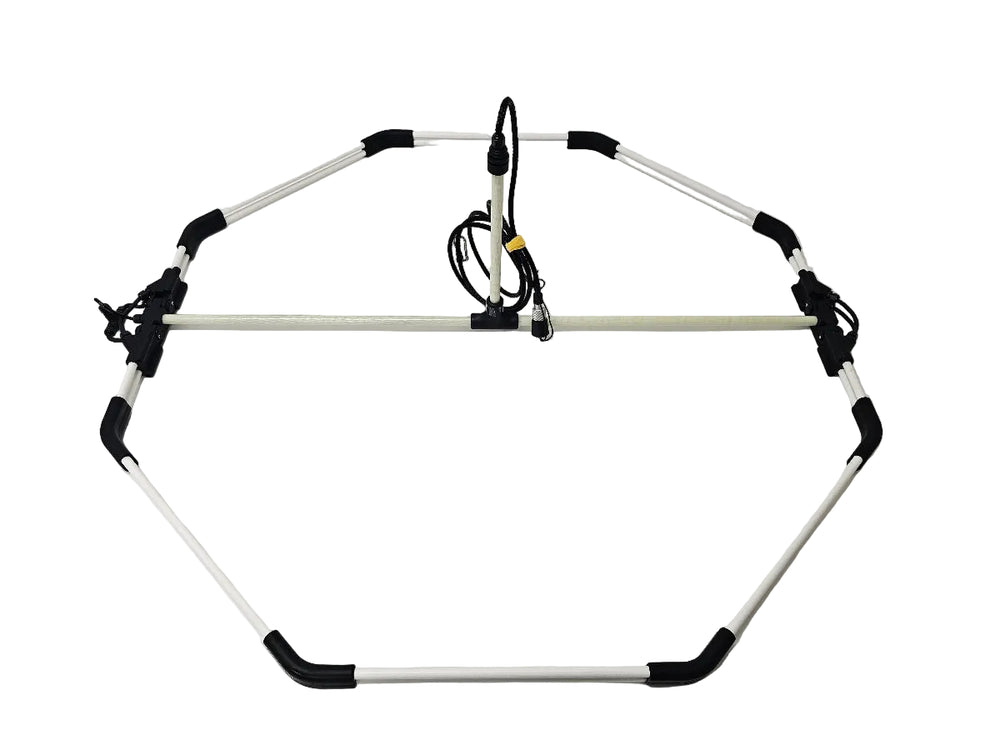

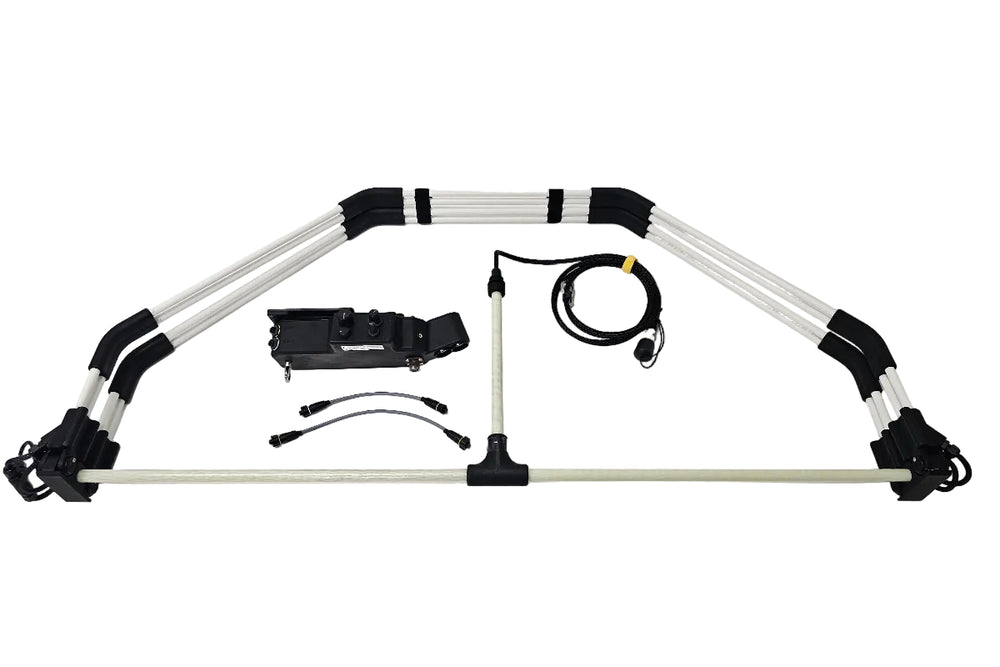

- Search coil on foldable frame
- Mounting and suspension system
- Data and power cables
- Rugged transportation case
