GPR system: Radar Systems Zond Aero LF (low frequency)
Extra-lightweight, frequency-customizable GPR system built for DJI M400/M300/M350 RTK integration.
Extra-lightweight GPR system, suitable for medium-sized drones like the DJI M400/M300/M350 RTK.

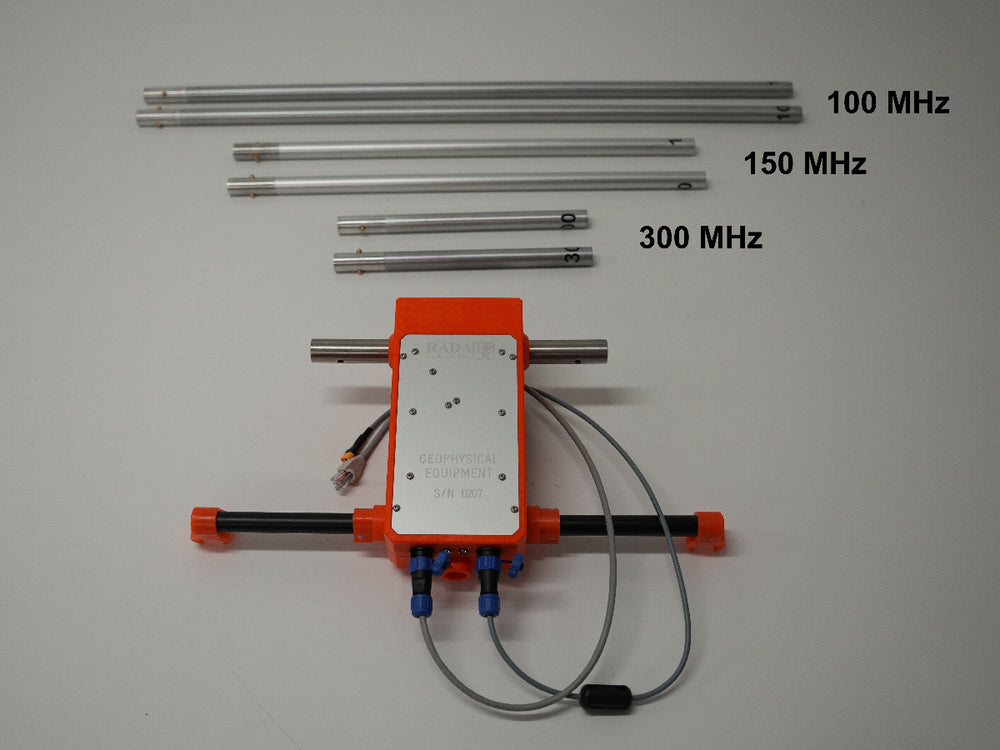

Zond Aero LF is an extremely customizable GPR system in terms of available frequencies — tested with antennas across the 50–400MHz range, making it the most versatile system in the Integrated Systems portfolio. By default it ships with 3 sets of dipoles for 300, 150 and 100 MHz; dipoles for other frequencies are available on request, and supplied dipoles can even be trimmed to reach a required centre frequency.

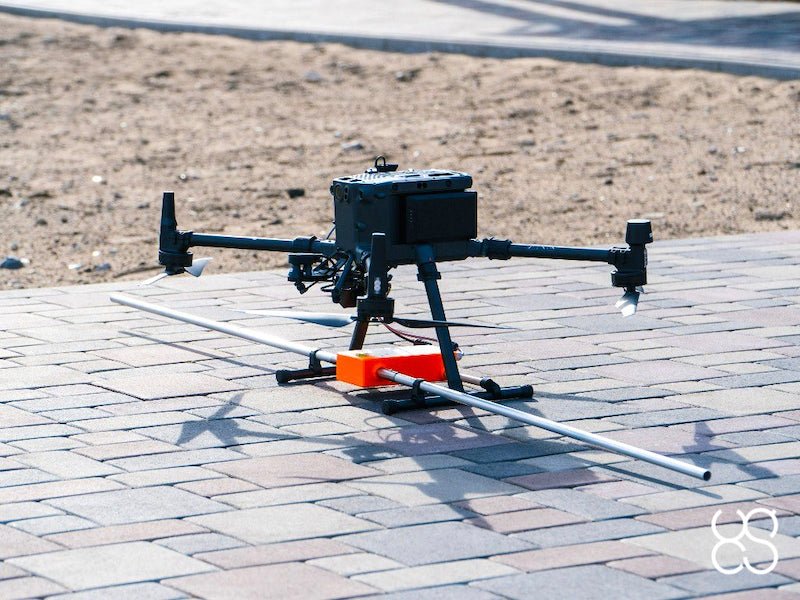

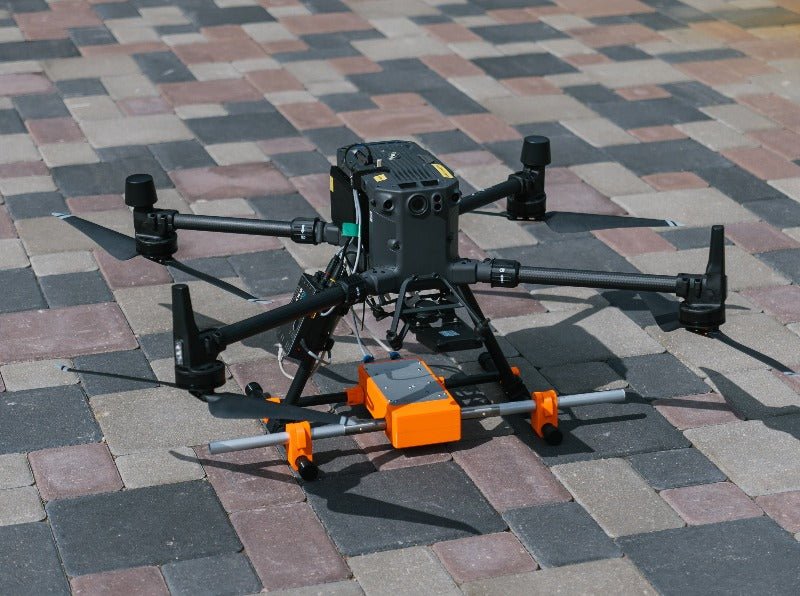

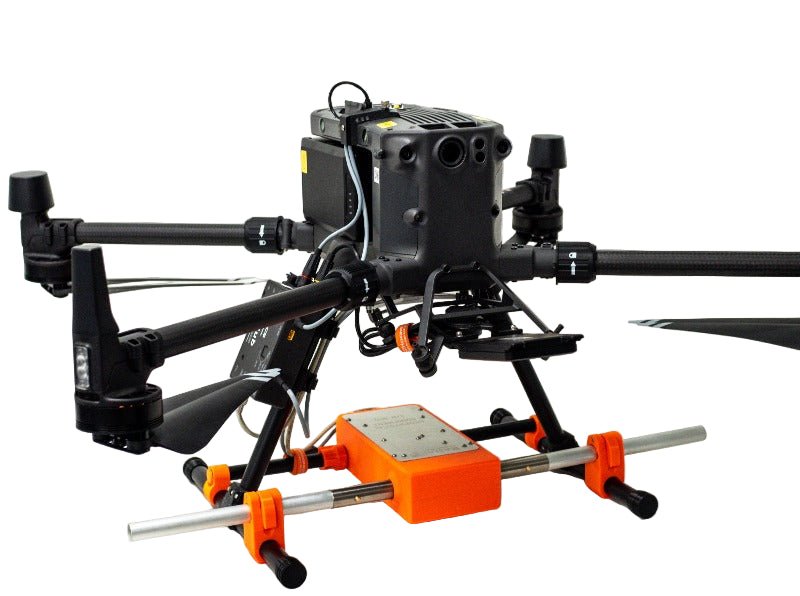

It uses Real Time Sampling (RTS) with high hardware stacking to deliver high-resolution, low-noise data, and includes a transportation box plus mounting kit for the DJI M400 or M300/M350 RTK drone.
Technical
| Type | Single channel GPR with unshielded dipole antenna |
| Central frequency | 100, 150, 300 MHz (custom 50–400 MHz by request) |
| Operating bandwidth | 50–200 / 75–300 / 150–600 MHz (-12 dB) |
| Sampling | Real Time Sampling (RTS) with high hardware stacking |
| Samples per scan | 256 / 512 / 1024 / 2048 / 4096 / 8192 (selectable) |
| Sample rate | Up to 1,280,000 samples/second |
| Scan rate | Up to 2,500 scans/s |
| Sample output | 32-bit digital raw data |
| Depth | Up to 20m in average soil; up to 10m at antenna elevation <3m |
| Data format | Standard geophysical SEG-Y (.sgy) with trace geotagging |
Environmental
| Temperature | -20°C to 60°C (internal) |
| Humidity | 96% non-condensing |
| Ingress protection | IP68 in protective box (transport); IP52 airborne |
Mechanical
| Controller size | 23 × 25 × 5.5 cm |
| Dipole length | 100MHz: 0.75m · 150MHz: 0.5m · 300MHz: 0.25m |
| Weight | 0.8kg controller · 0.1–0.4kg per antenna |
What's in the kit
- Zond Aero LF GPR system with 100, 150, 300 MHz centre-frequency antennas
- Prism 2 Data Acquisition/Processing software
- Transport case for GPR controller
- Tube for antennas
- Mounting kit for the DJI M300/M350 RTK drone
