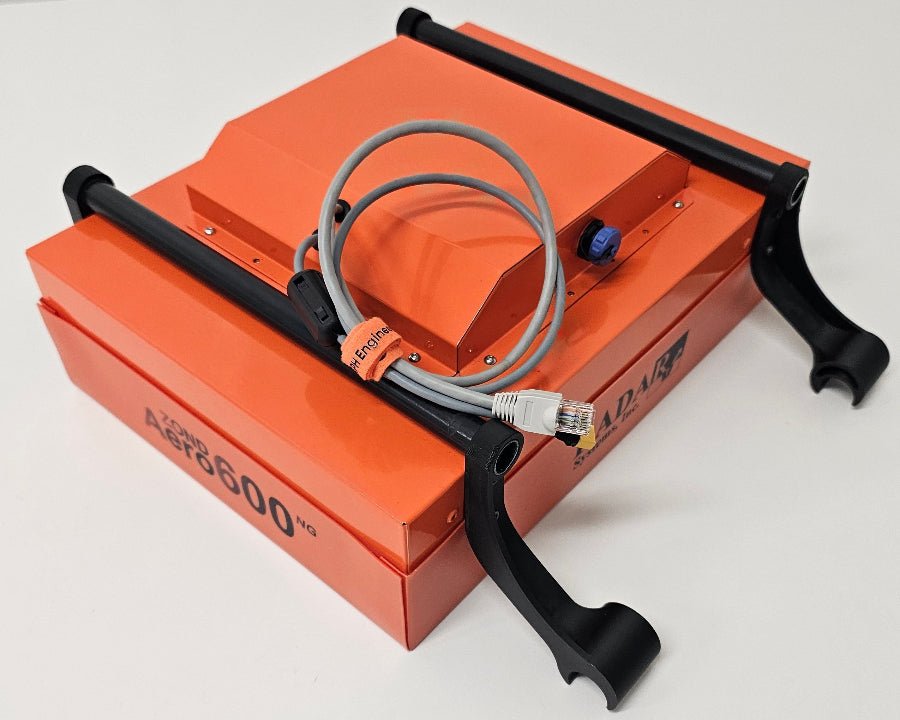

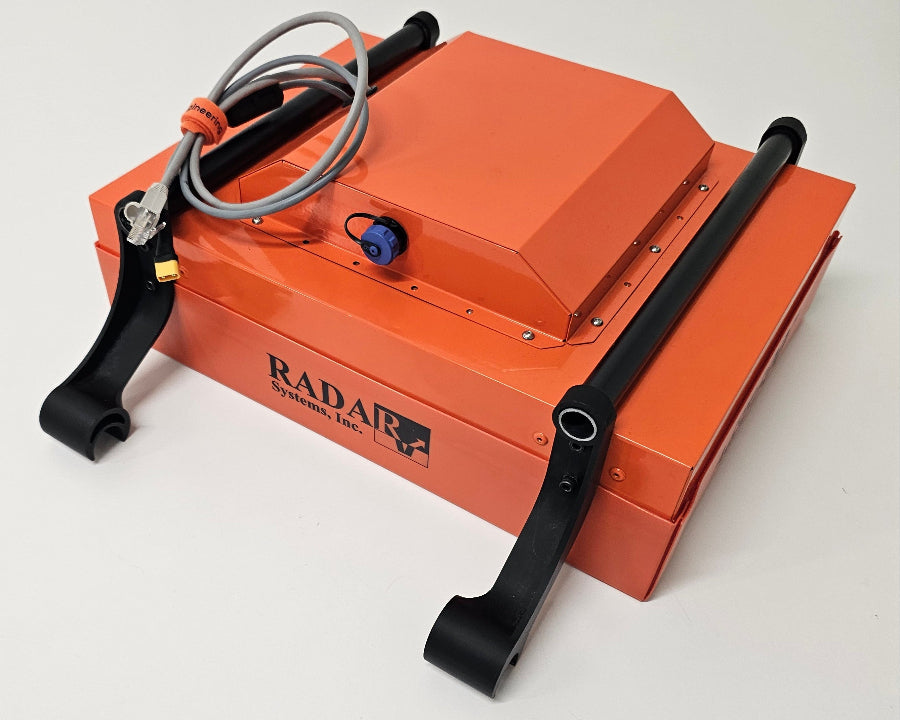

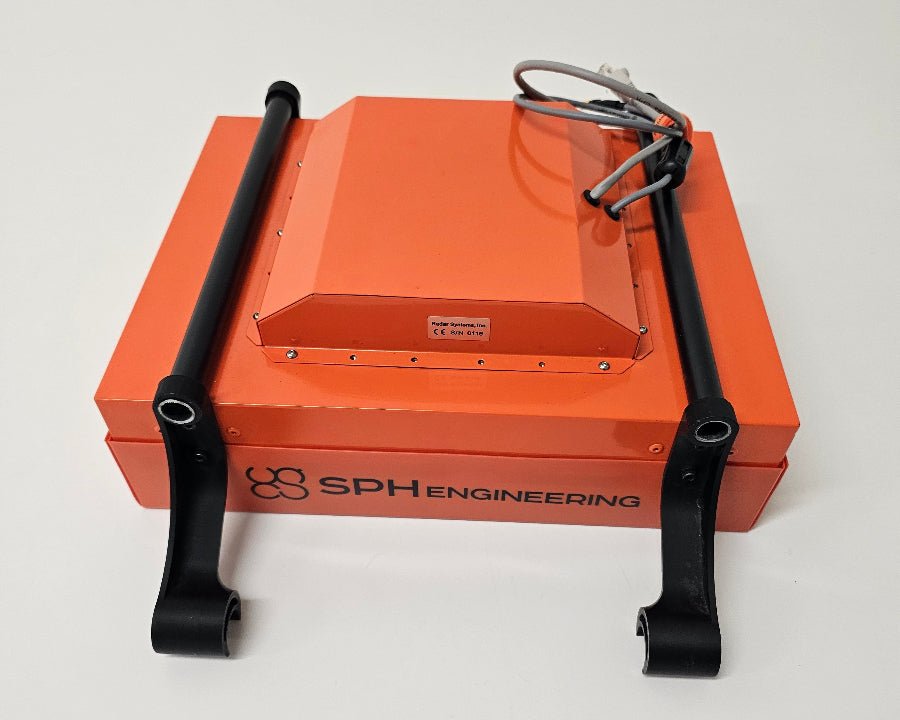

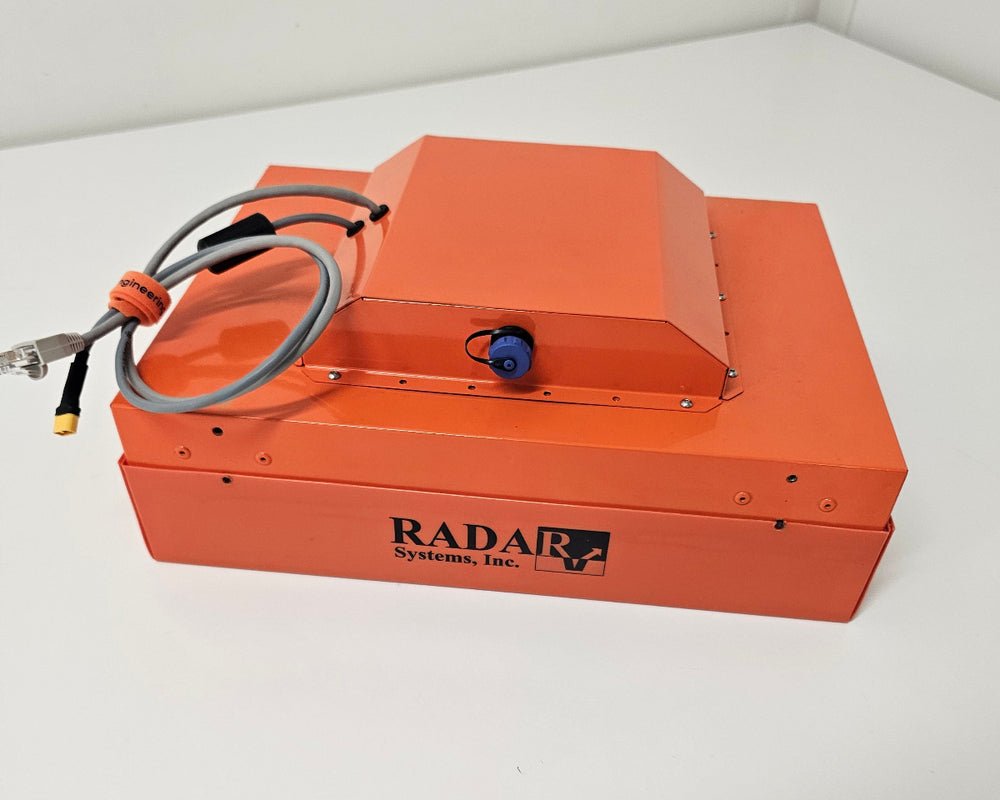

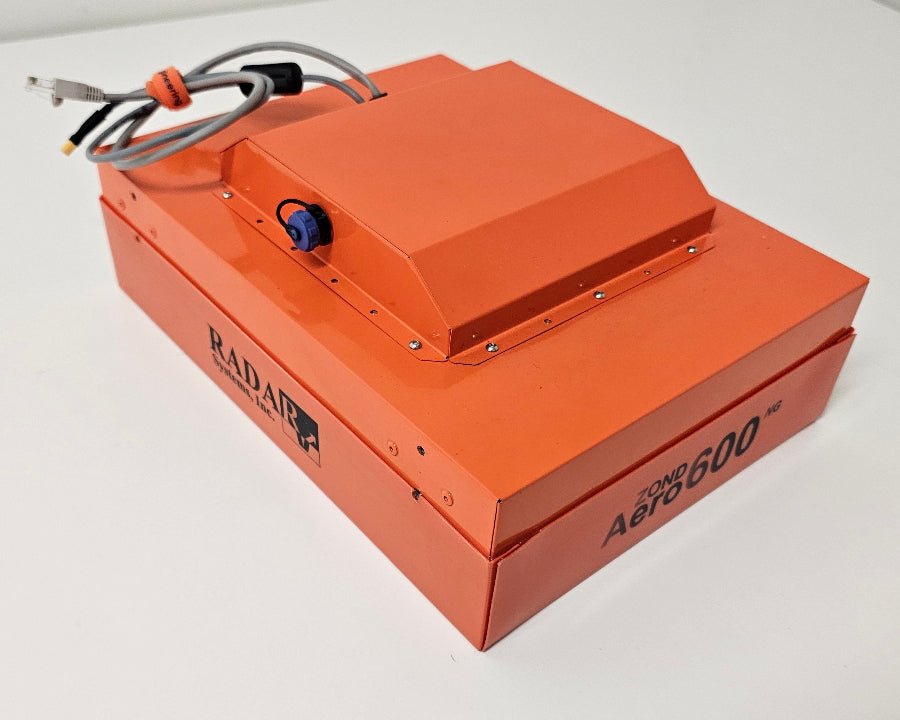

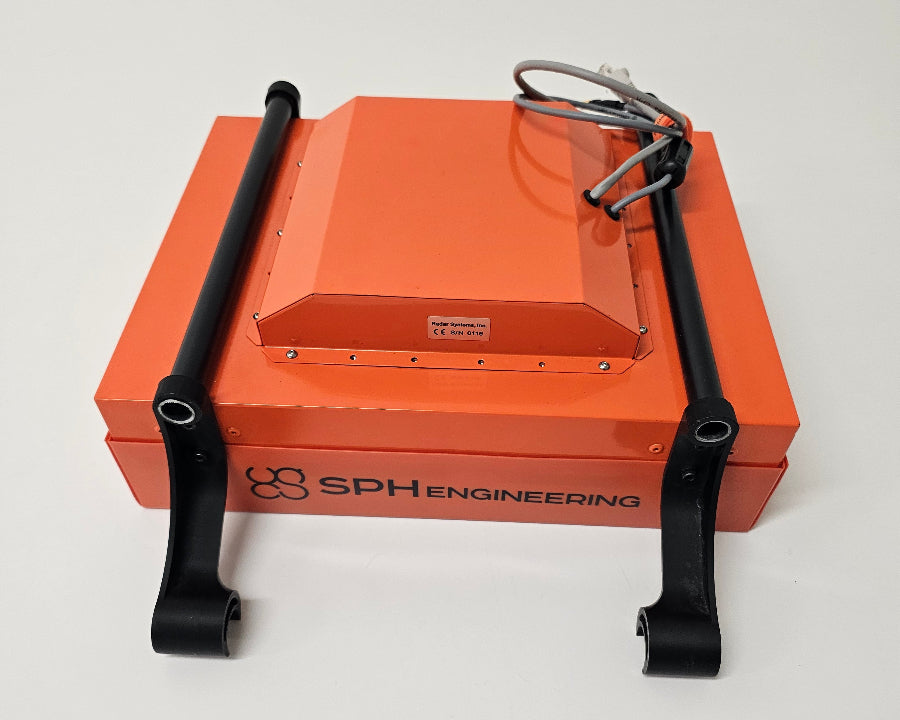

GPR system: Radar Systems Zond Aero 600 "NG"
Universal terrestrial/airborne GPR with real-time sampling, sized to fit between the legs of most popular drones without extra mounting hardware.
Universal ground-penetrating radar for both terrestrial and airborne surveys, using real-time sampling (RTS) with built-in digital signal processing to deliver a strong signal-to-noise ratio.

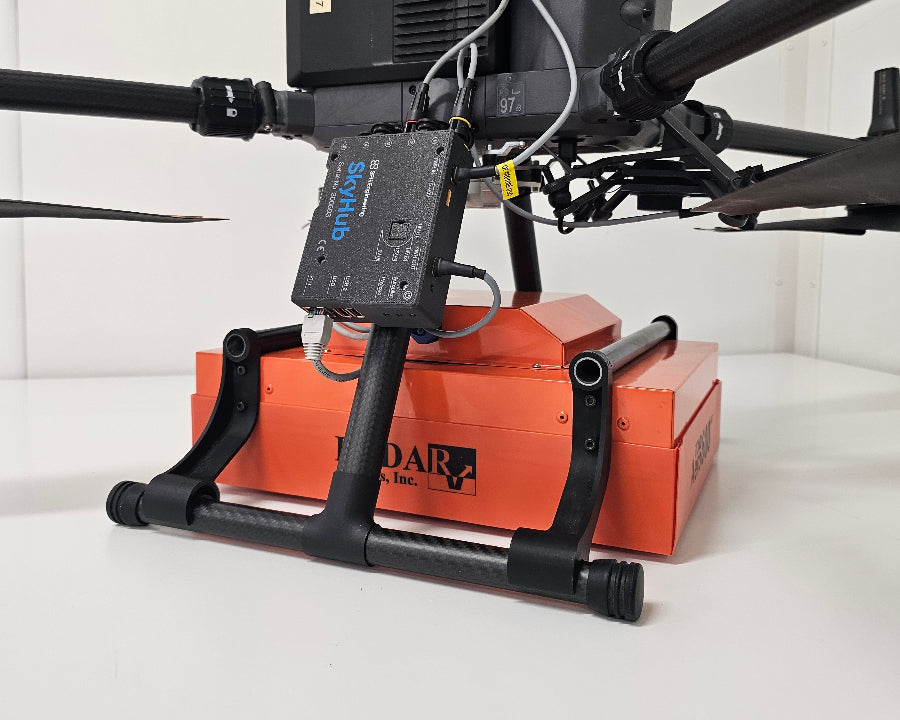

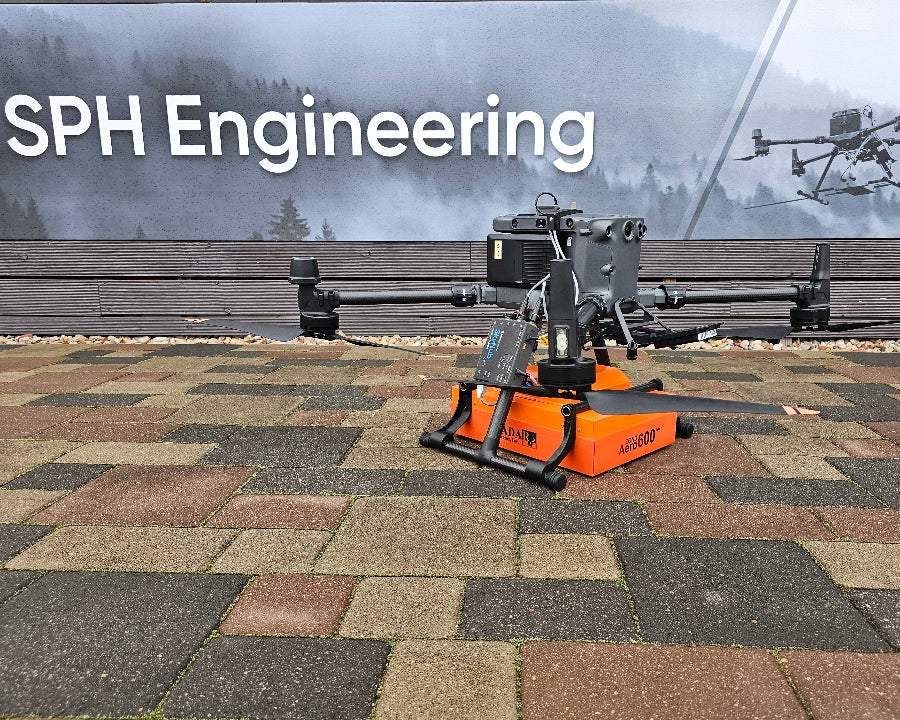

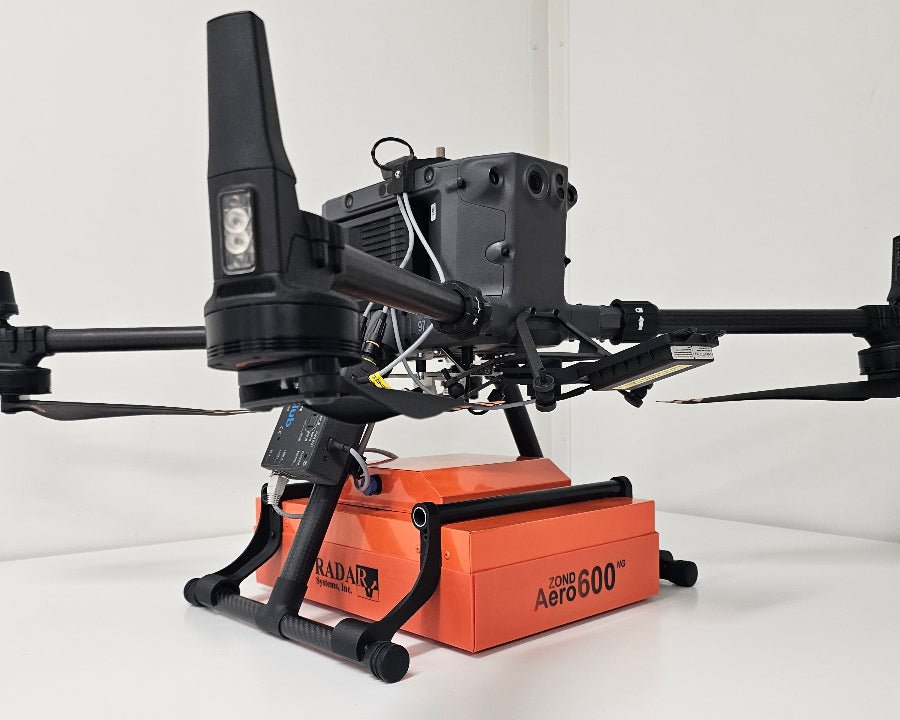

The 600 NG is a marginally smaller sibling of the Aero 500 NG, offering nearly the same data quality and penetration while fitting between the legs of most drones without complicated mounting hardware — making it the lightest system in the range and a good match for the DJI M400/M350/M300 RTK family. It can also be run on a wheeled cart for street-level scans or dragged on a tow rope where a cart is not practical.
Technical
| Type | Single-channel with shielded antenna |
| Central Frequency | 600 MHz |
| Operating Bandwidth | 300-950 MHz (-12 dB) |
| Sampling | Real Time Sampling (RTS) with high hardware stacking |
| Samples per scan | 256/512/1024/2048/4096/8192 |
| Sample rate | Up to 1,280,000 samples/second |
| Scan rate | Up to 2,500 scans/s |
| Depth | Up to 4 m in average soil |
| Data | Standard Geophysical SEGY (.sgy) with geotagging |
Environmental
| Temperature | -20°C to 60°C internal |
| Humidity | 96% non-condensing |
| Ingress Protection | IP68 boxed; IP52 airborne |
Mechanical
| Size | 34 x 25 x 13 cm airborne |
| Weight | 1.5–1.7 kg airborne; 6.5 kg boxed |
What's in the kit
- Zond Aero 600 NG GPR system with 600 MHz antenna
- Prism 2 software
- Protective case (also for ground surveys)
- 99 Wh Li-Ion battery + Wi-Fi router in case
- Charger
- Tow rope
- Mounting kit for DJI M400/M300/M350
