Radar Systems · SKU IS-RS-ZOND-AERO-500
GPR system: Radar Systems Zond Aero 500 "NG"
Versatile terrestrial/airborne GPR built for DJI M350/M300 RTK, deployable on a cart, tow rope, or the drone itself.
Price on request
Universal ground-penetrating radar for terrestrial and airborne surveys, using real-time sampling (RTS) with advanced onboard digital signal processing for a high signal-to-noise ratio.

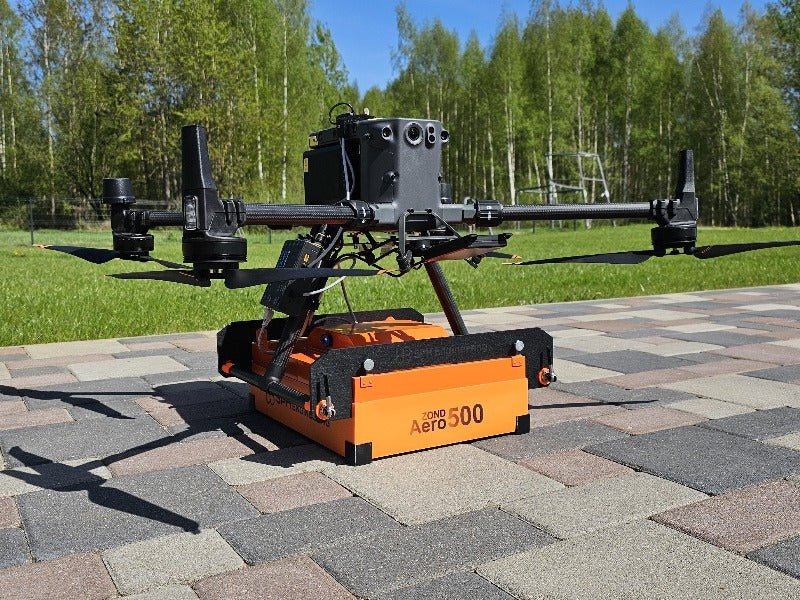

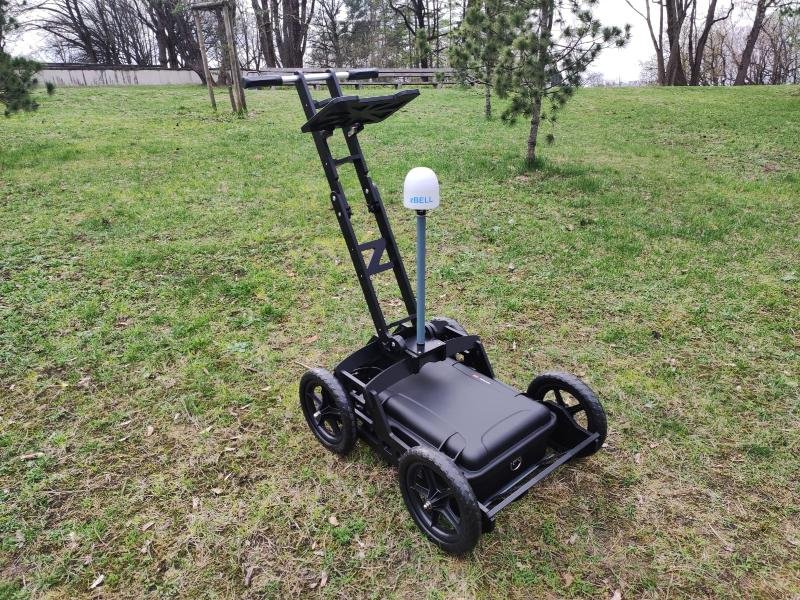

The Aero 500 NG can be run on a wheeled cart, dragged with a tow rope, or flown on a drone. It targets the DJI M350/M300 RTK — note it is not compatible with the newer DJI M400 (use the Zond Aero 600 for that).
Utility searchUnderground infrastructure mappingArchaeologyGeotechnical surveysGeological stratigraphyGlaciology, snow/ice thickness profiling
Technical
| Type | Single-channel with shielded antenna |
| Central Frequency | 500 MHz |
| Operating Bandwidth | 200-900 MHz (-12 dB) |
| Sample rate | Up to 1,280,000 samples/second |
| Depth | Up to 4 m in average soil |
| Data | Standard Geophysical SEGY (.sgy) with geotagging |
Environmental
| Temperature | -20°C to 60°C internal |
| Ingress Protection | IP68 boxed; IP52 airborne |
Mechanical
| Size | 41 x 31 x 16 cm airborne |
| Weight | 2.1 kg airborne; 7.1 kg boxed |
What's in the kit

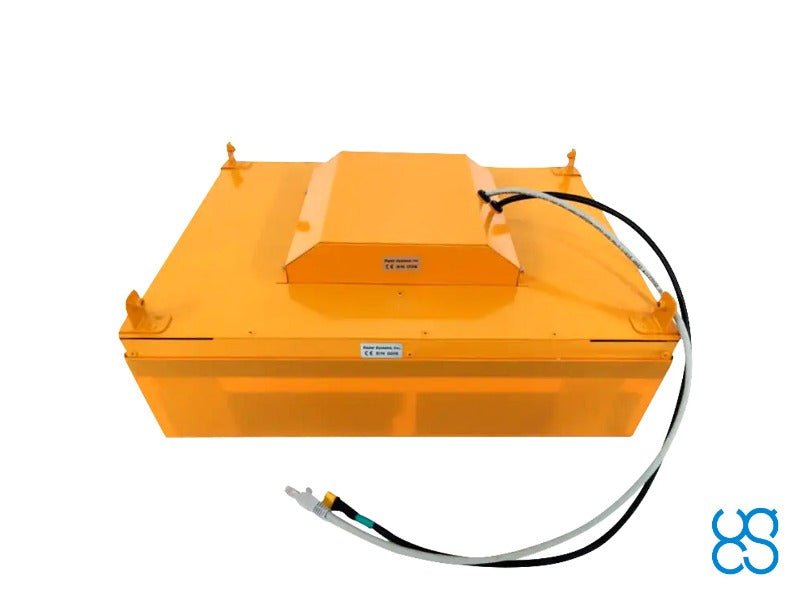

- Zond Aero 500 NG GPR system with 500 MHz antenna
- Prism 2 software
- Protective case (also for ground surveys)
- 99 Wh Li-Ion battery + Wi-Fi router in case
- Charger
- Tow rope

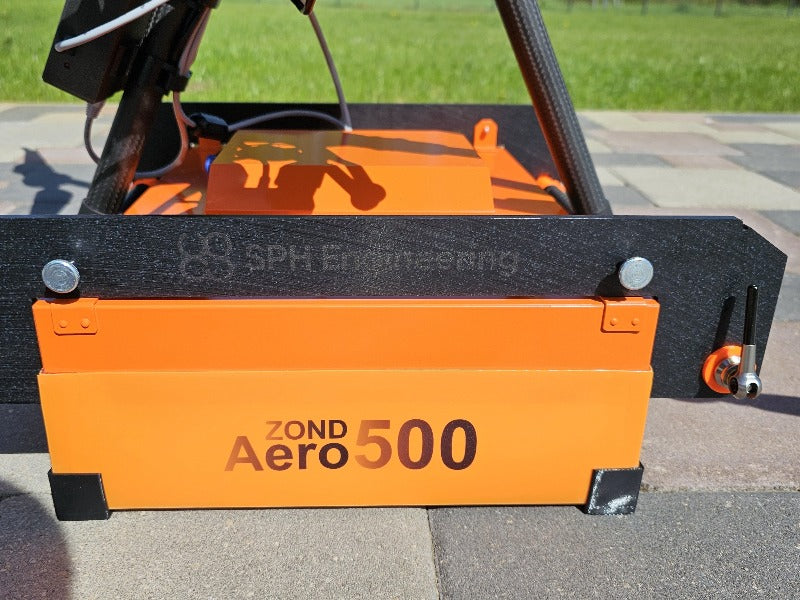

- Mounting kit for DJI M300/M350 RTK
