Radar Systems · SKU IS-RS-ZOND-AERO-1000

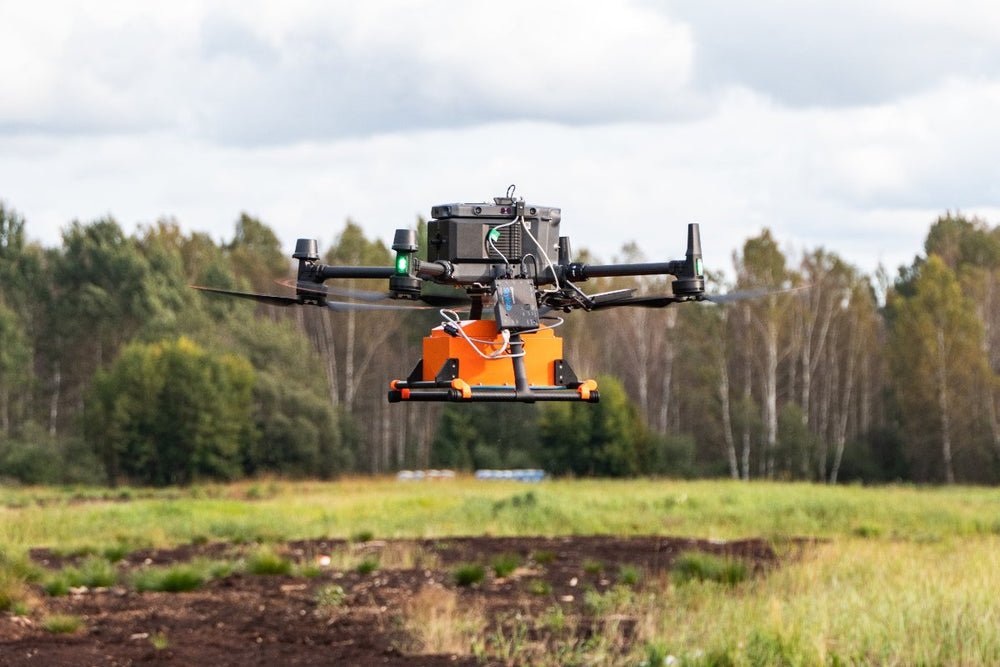

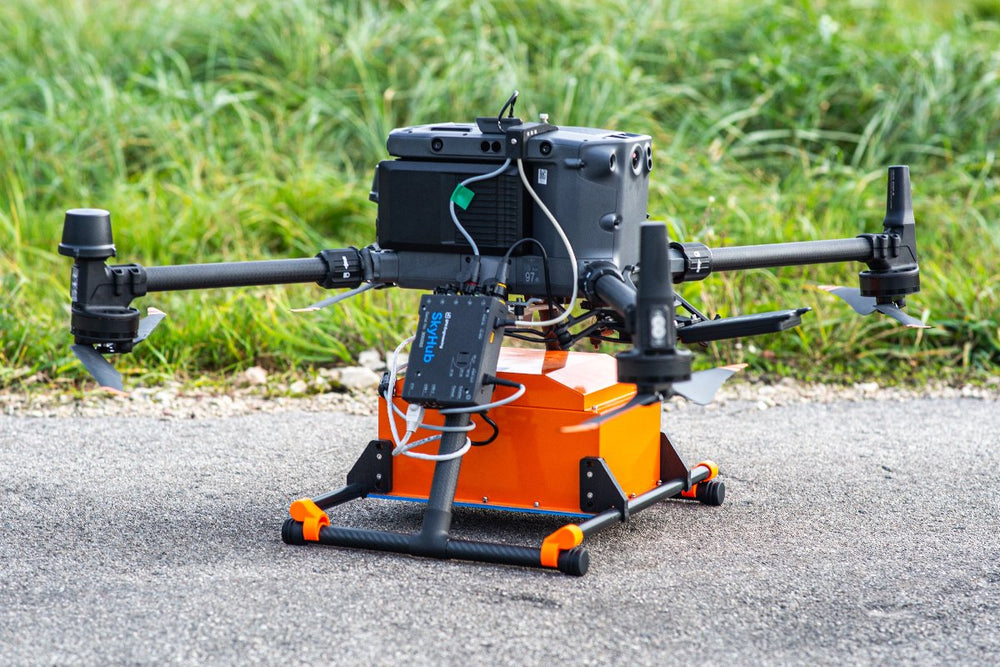

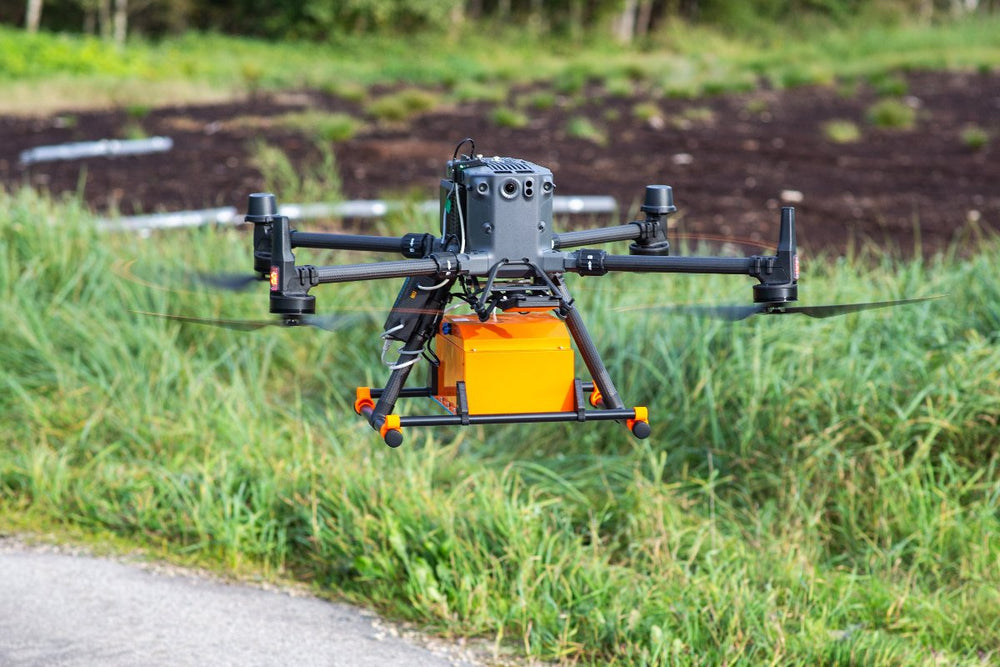

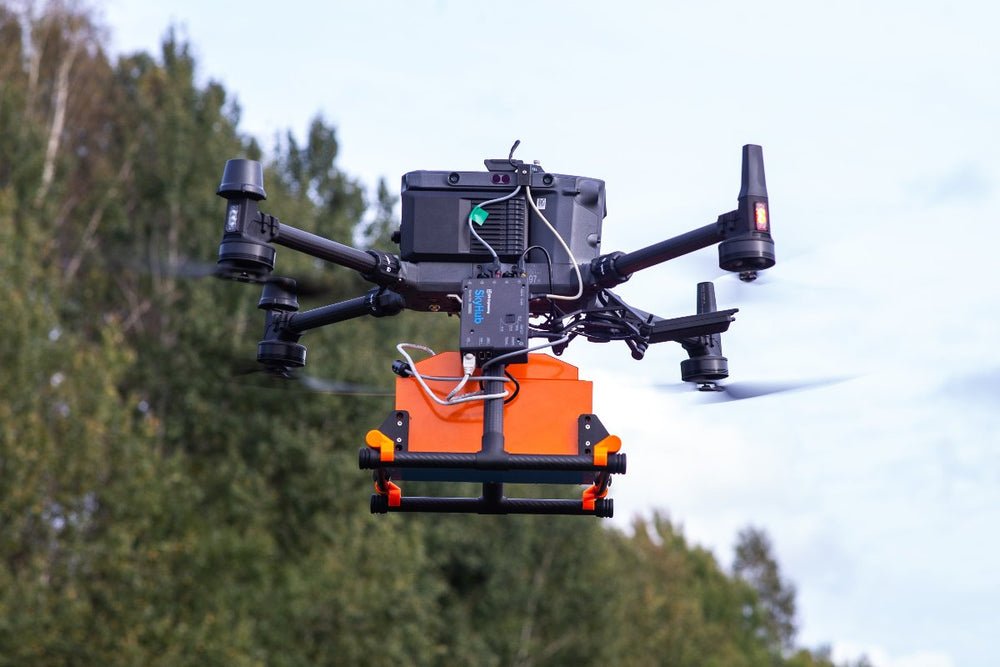

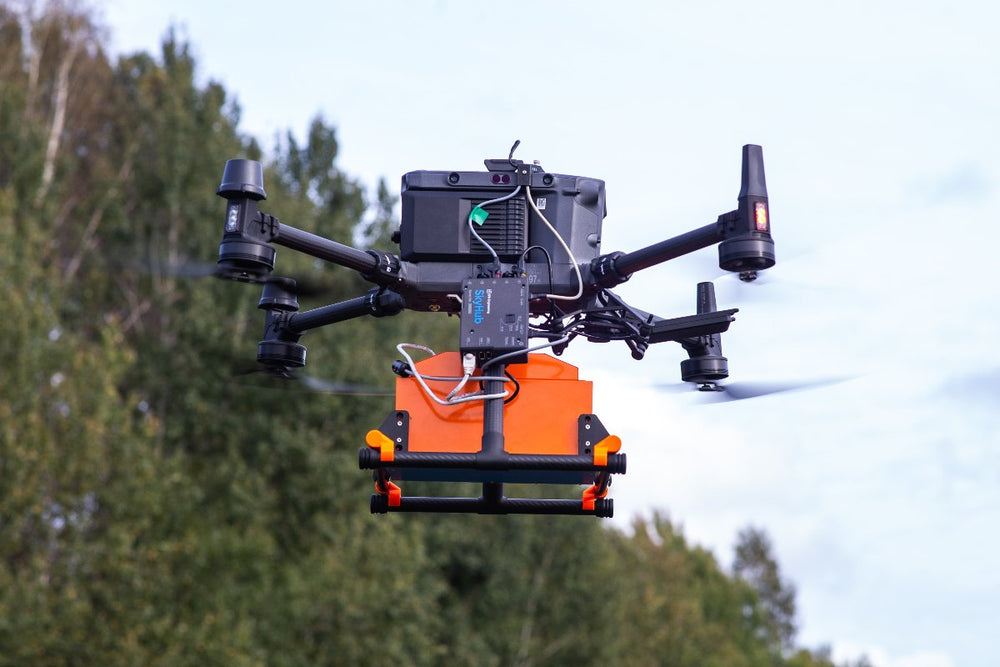

GPR system: Radar Systems Zond Aero 1000 "NG"
High-frequency terrestrial/airborne GPR tuned for shallow, high-resolution work like snow/ice profiling and small near-surface object detection.
Price on request
Universal ground-penetrating radar for terrestrial and airborne surveys, using real-time sampling (RTS) with advanced onboard digital signal processing.
The Aero 1000 NG is the highest-frequency Zond Aero NG model, trading depth for resolution — well suited to profiling snow/ice or picking out small objects tens of centimeters below the surface.
Profiling snow and ice to several meters depthDetection of small objects a few tens of centimeters below the surface
Technical
| Type | Single-channel with shielded antenna |
| Central Frequency | 1000 MHz |
| Operating Bandwidth | 600-1300 MHz (-6 dB) |
| Depth | Up to 1 m in average soil |
| Data | Standard Geophysical SEGY (.sgy) with geotagging |
Environmental
| Temperature | -20°C to 60°C internal |
| Ingress Protection | IP68 boxed; IP52 airborne |
Mechanical
| Size | 31 x 19 x 15 cm airborne |
| Weight | 1.8 kg airborne; 7.0 kg boxed |
What's in the kit
- Zond Aero 1000 NG GPR system with 1000 MHz antenna
- Prism 2 software
- NANUK protective case (also for ground surveys)
- 99 Wh Li-Ion battery + Wi-Fi router in case
- Charger
- Tow rope
- Mounting kit for DJI M300/M350 RTK
