SENSYS · SKU IS-SENSYS-MAGDRONE-R4

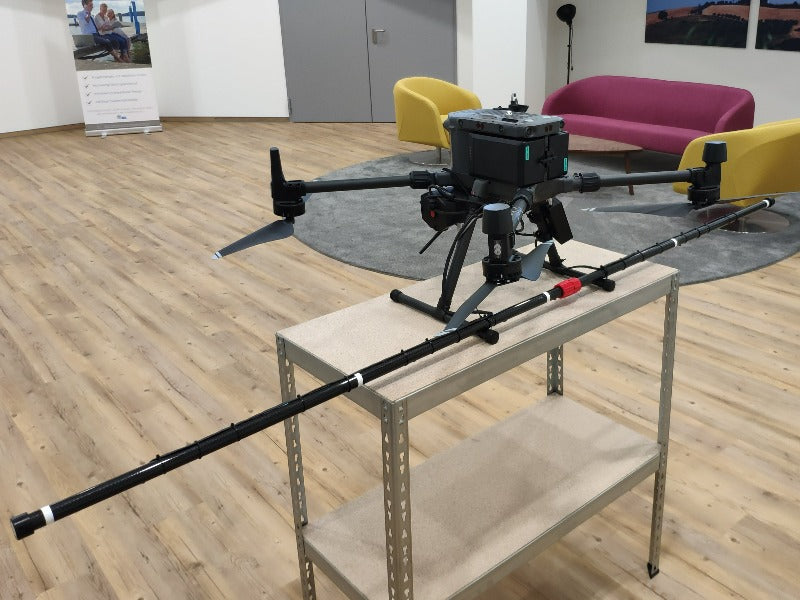

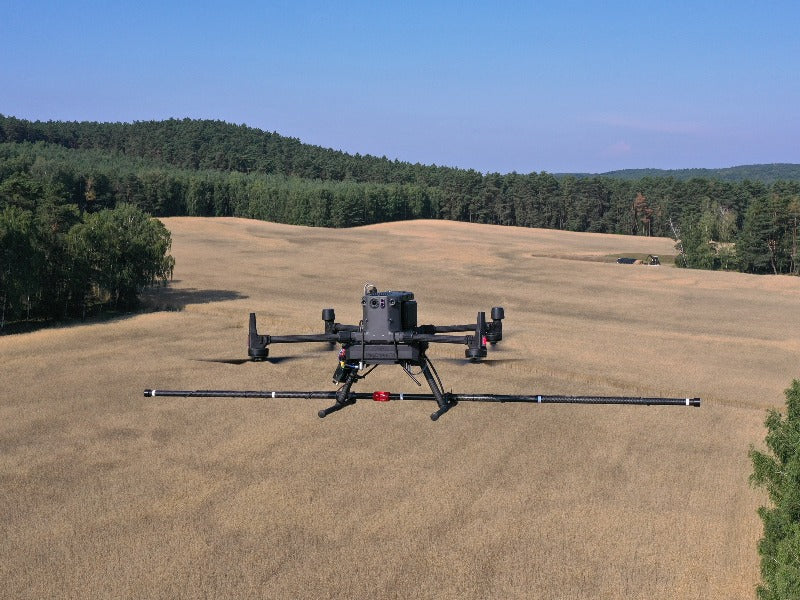

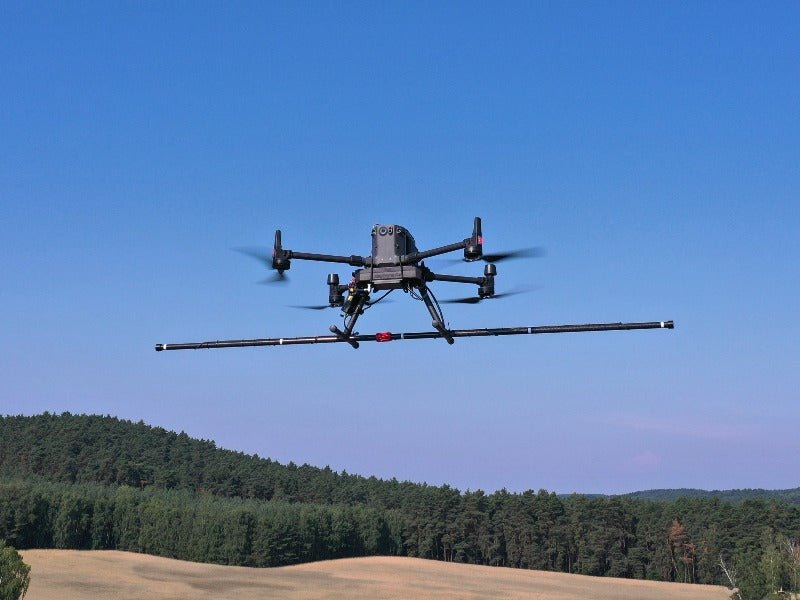

SENSYS MagDrone R4 magnetometer
Ultra-light 5-sensor fluxgate array for high-resolution mapping of small, compact UXO and archaeological features.
Price on request
The MagDrone R4 is an ultra-light magnetometer with 5 triaxial fluxgates, built for any UAV capable of carrying 2 kg of payload. Unlike the MagDrone R3, the R4 is designed for high-resolution mapping to detect small and compact objects and structures in the ground, such as UXO or archaeological features.
As with all magnetometers used to detect artificial objects, the general rule is to fly as low as possible — around 1 m above the surface or lower for UXO search — which means the drone should carry a terrain-following system.
Searching for UXO (unexploded ordnance)ArchaeologySurveying for metal objects weighing a few hundred grams or heavier
Technical
| Sensor designation | FGM3D/75 |
| Number of sensors | 5 |
| Sensor technology | Fluxgate triaxial |
| Sensor sensitivity | High |
| Sampling rate | 200 – 1,000 Hz |
| Dynamic range | ±75,000 nT |
| Live data stream to ground station | No |
| Design | Horizontal sensor bar |
| Battery | Power provided from the drone |
Environmental
| Operating Temperature | -20°C to +50°C |
| Ingress Protection | IP52 |
| Humidity | Non-condensing |
Supported Drones
| Compatible platforms | DJI M350 RTK, DJI M300 RTK, Inspired Flight IF800, Inspired Flight IF1200A, or similar |
Mechanical
| Weight | 1.4 kg |
| Size | 2 m long sensor bar |
What's in the kit
- MagDrone R4 magnetometer
- MagDrone Data Tool software
- Power supply cable
- USB cable
- Cable to connect MagDrone R4 to GPS-out interface of SkyHub
- Mountings for the drone
- Manual
- Transport hard case
