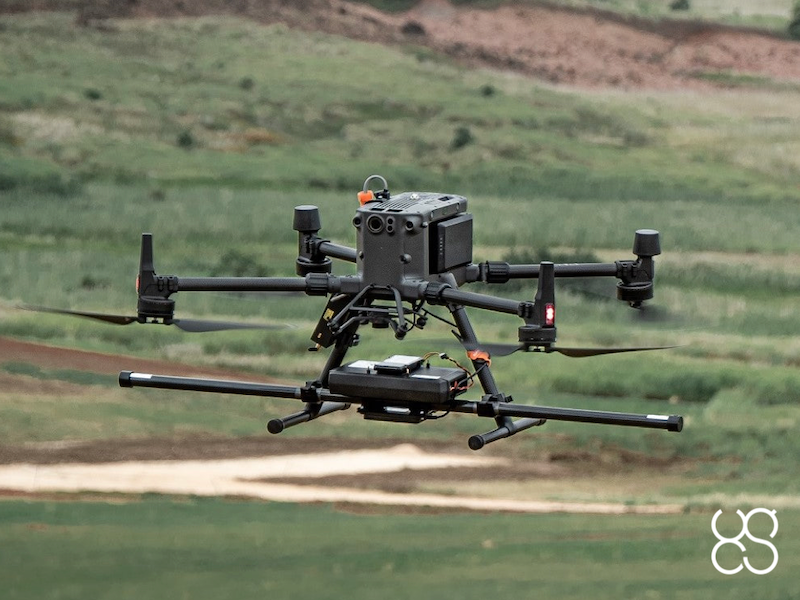

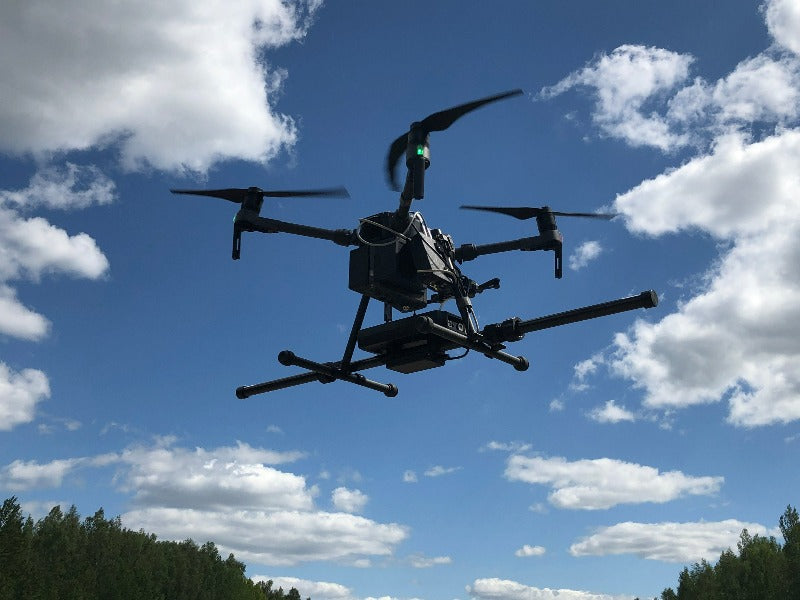

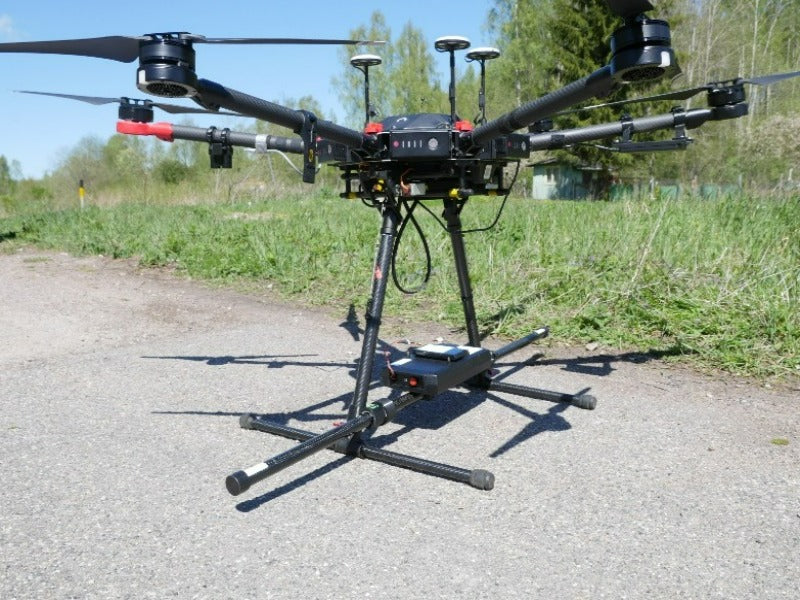

SENSYS MagDrone R3 magnetometer
Ultra-portable dual-sensor fluxgate magnetometer with built-in GPS, purpose-built for UXO search and buried-infrastructure mapping.
Price on request
The MagDrone R3 is an ultra-portable magnetometer that attaches to any UAV with a minimum payload of 1 kg. Units from SN000200 onward have a built-in GPS and can also connect an external one — the second configuration is recommended for better geotagging when the R3 is flown with a SkyHub onboard computer on an RTK-equipped drone.
As with all magnetometers used to detect artificial objects, the general rule is to fly as low as possible — around 1 m above the surface or lower for UXO search — which means the drone should carry a terrain-following system.
Searching for UXO (unexploded ordnance)Locating buried infrastructure (metal pipes and shielded cables) and power cablesArchaeologySurveying for metal objects weighing a few hundred grams or heavier
Technical
| Sensor designation | FGM3D/75 |
| Number of sensors | 2 |
| Sensor technology | Fluxgate triaxial |
| Sensor sensitivity | High |
| Sampling rate | 200 – 1,000 Hz |
| Dynamic range | ±75,000 nT |
| Live data stream to ground station | No |
| Design | Horizontal sensor bar |
| Battery | 11.1 V Li-Ion rechargeable battery OR power from the drone |
Environmental
| Operating Temperature | -20°C to +50°C |
| Ingress Protection | IP52 |
| Humidity | Non-condensing |
Supported Drones
| Compatible platforms | DJI M400, DJI M350 RTK, DJI M300 RTK, Inspired Flight IF800, Inspired Flight IF1200A, or similar |
Mechanical
| Weight | 0.7 kg (w/o battery) |
| Size | 1 m long sensor bar |
What's in the kit
- MagDrone R3 magnetometer
- MagDrone Data Tool software
- 11.1 V Li-Ion rechargeable battery and wall charger (power from SkyHub when used together)
- USB cable
- Cable to connect MagDrone R3 to GPS-out interface of SkyHub
- Mounting plate and screws
- Set of international power plugs
- Manual
- Transport hard case
