SENSYS MagDrone R1 magnetometer
Ultra-portable fluxgate magnetometer built to fly just centimeters above the ground for UXO detection and buried-metal surveys.

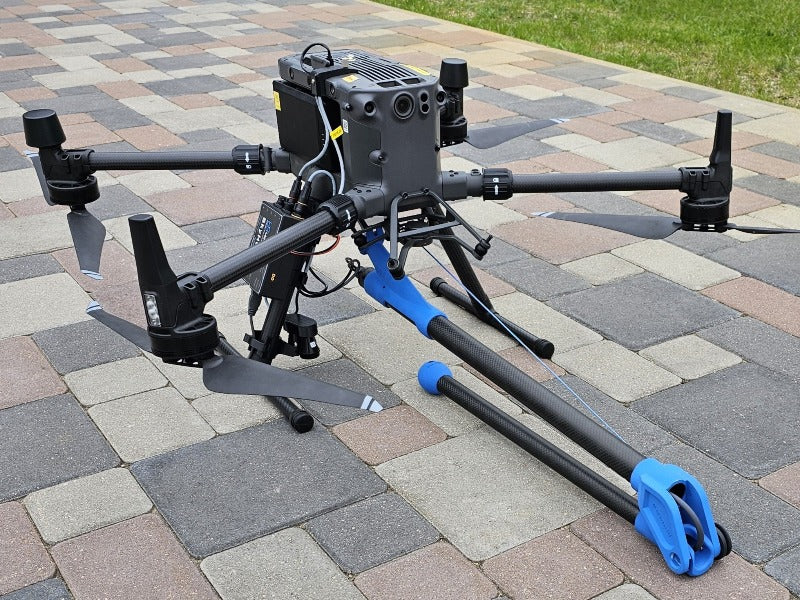

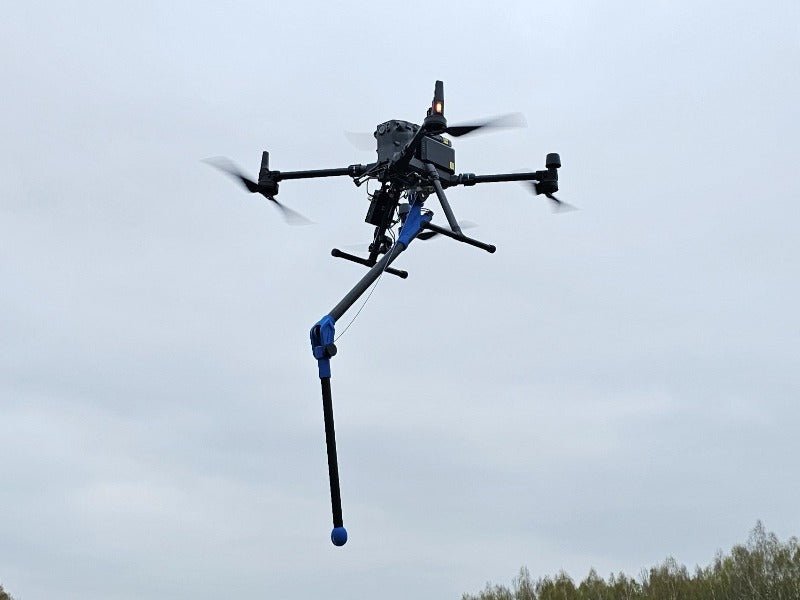

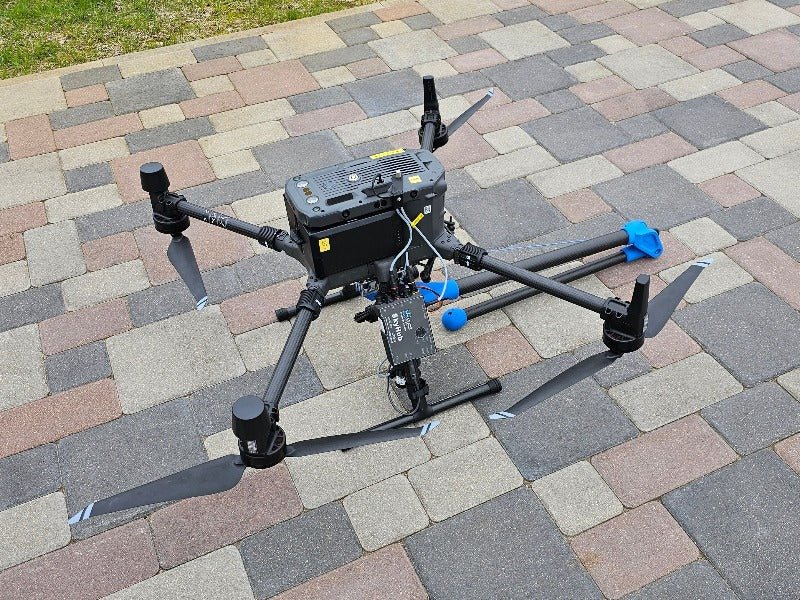

The MagDrone R1 is an ultra-portable magnetometer that attaches to any UAV with a minimum payload of 1 kg. Its unique design allows extremely low surface-to-sensor clearance — down to just a couple of dozen centimeters — and if the sensor touches the ground or vegetation, it will not bring the drone down, which matters when searching for small UXO items in overgrown fields.

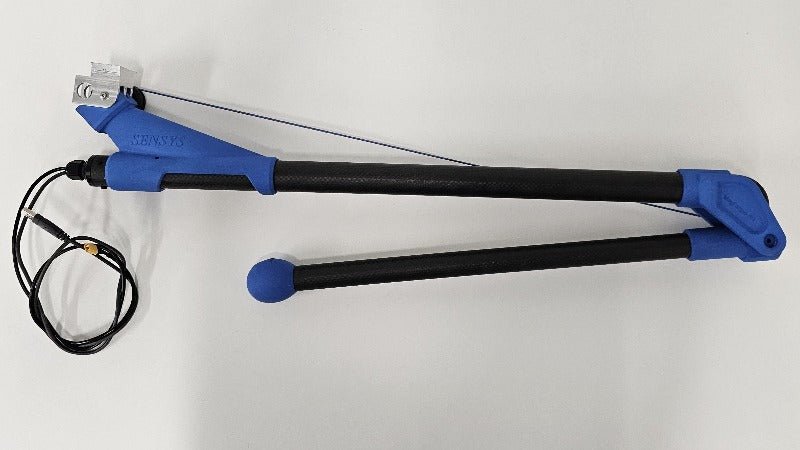

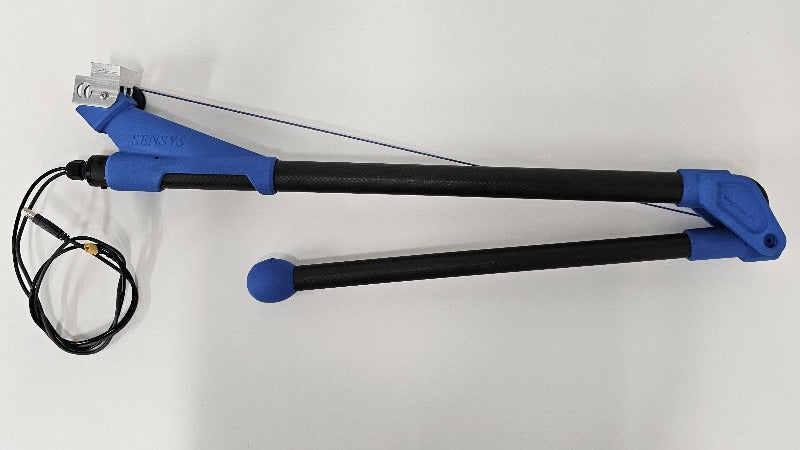

A self-foldable sensor mount makes take-off and landing straightforward without demanding extra pilot qualification, unlike sensors flown on suspension cords. The system has no internal data recorder and requires a SkyHub onboard computer with datalogging software to operate.
Technical
| Sensor designation | FGM3D/75 |
| Number of sensors | 1 |
| Sensor technology | Fluxgate triaxial |
| Sensor sensitivity | High |
| Sampling rate | 200 – 1,000 Hz |
| Dynamic range | ±75,000 nT |
| Live data stream to ground station | Yes |
| Design | Foldable mount |
| Battery | Power provided from the drone |
Environmental
| Operating Temperature | -20°C to +50°C |
| Ingress Protection | IP52 |
| Humidity | Non-condensing |
Supported Drones
| Compatible platforms | DJI M400, DJI M350 RTK, DJI M300 RTK, Inspired Flight IF800, Inspired Flight IF1200A, or similar |
Mechanical
| Weight | 0.7 kg |
| Size (folded) | 818 x 185 x 80 mm |
| Size (unfolded) | 1174 x 567 x 80 mm |
What's in the kit
- MagDrone R1 magnetometer
- MagDrone Data Tool software

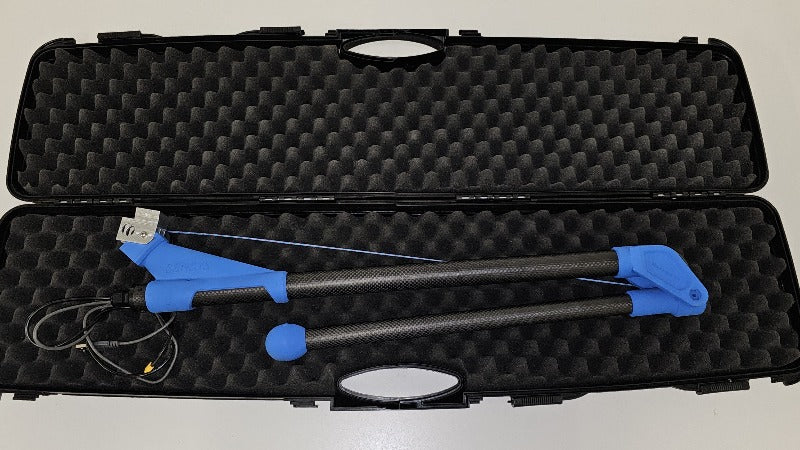

- Transport hard case
