SPH Engineering · SKU IS-ACCS-ANTENNA-50-RS-ZOND-AERO-500
Radar Systems 50MHz antenna for Zond Aero LF GPR
50 MHz dipole antenna set that extends the Zond Aero LF to very low frequency for deep, low-resolution subsurface work.
From ₹3,67,395excl. GST & shipping
Add-on 50 MHz dipole antenna set for the Zond Aero LF GPR, extending it to a very low operating frequency for deep, low-resolution subsurface investigation.

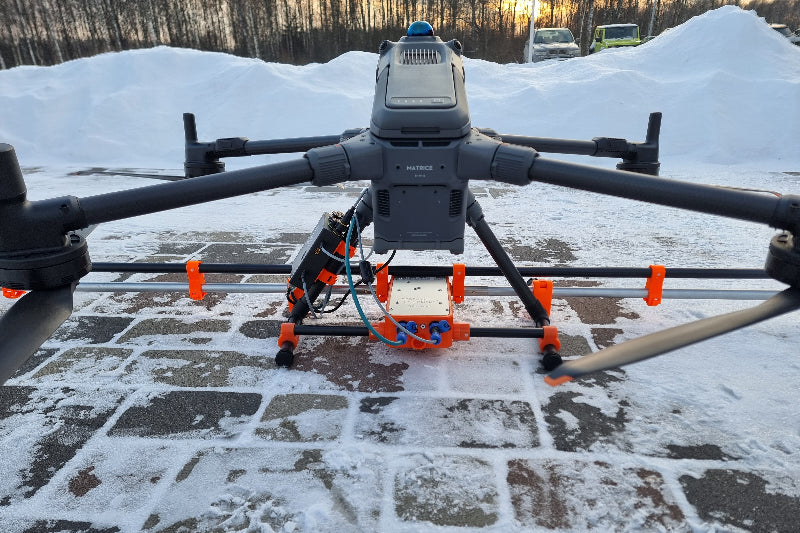

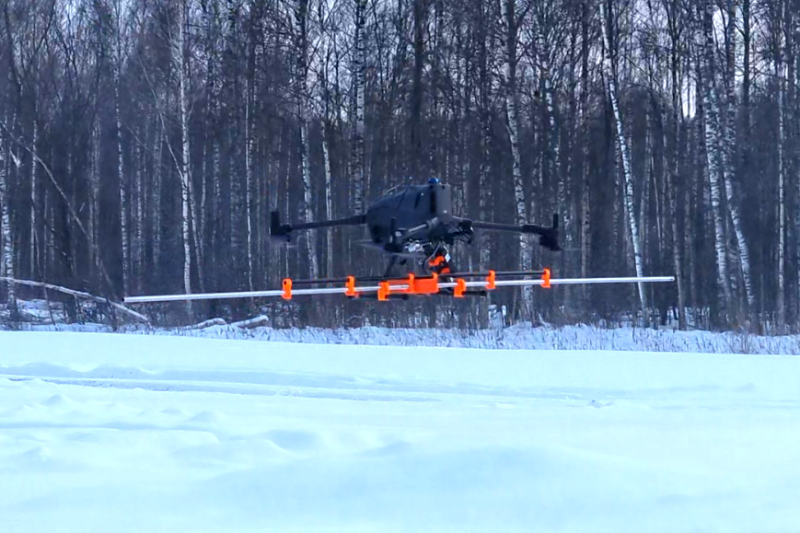

The set comprises two 1.5 m dipoles plus a plastic support rod and clamps/caps. Because of their size, these dipoles require a larger drone platform such as the DJI M400 — M400 mounts are included as standard.
Technical
| Central Frequency | 50 MHz |
| Dipole length | 1.5 m (x2) |
| Drone requirement | DJI M400 or comparable Pixhawk/Cube-based drone |
What's in the kit
- 2x 50MHz dipole (1.5 m) for Zond Aero LF
- 1x Plastic rod
- 3x Clamp type 1
- 5x Clamp type 2
- 2x Plastic cap for dipole
