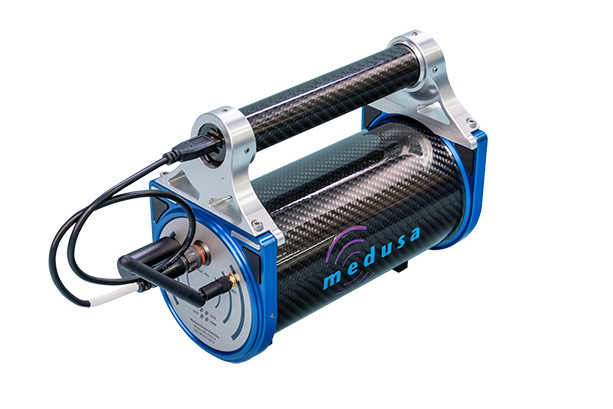

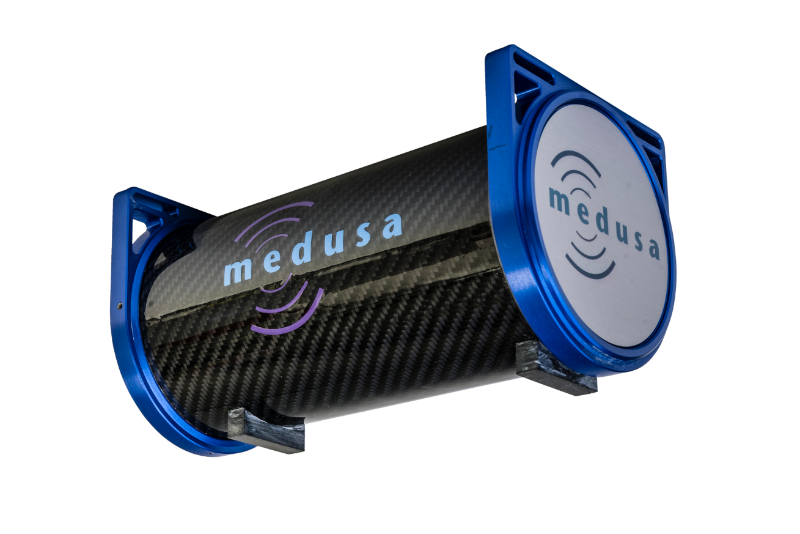

Medusa Radiometrics MS-350 gamma-ray spectrometer
Compact 350 ml CsI scintillation spectrometer for airborne soils, contamination and mineral-exploration surveys.

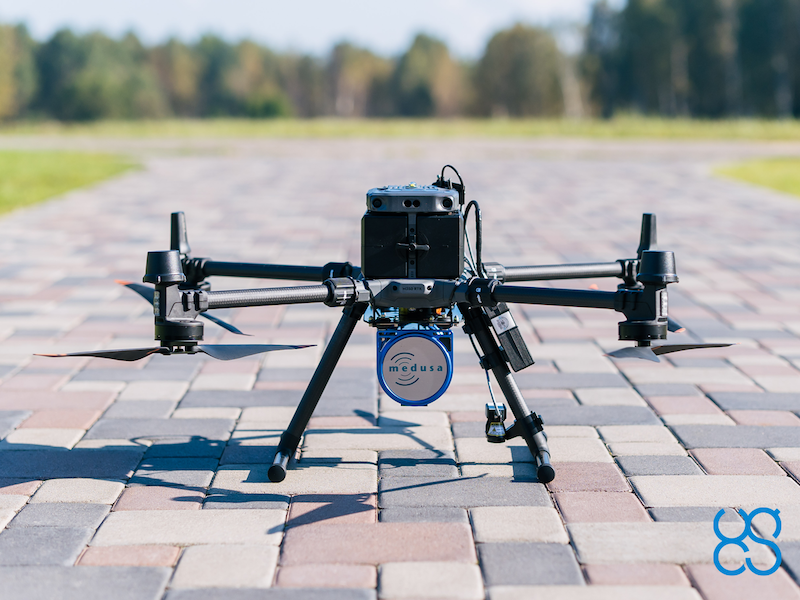

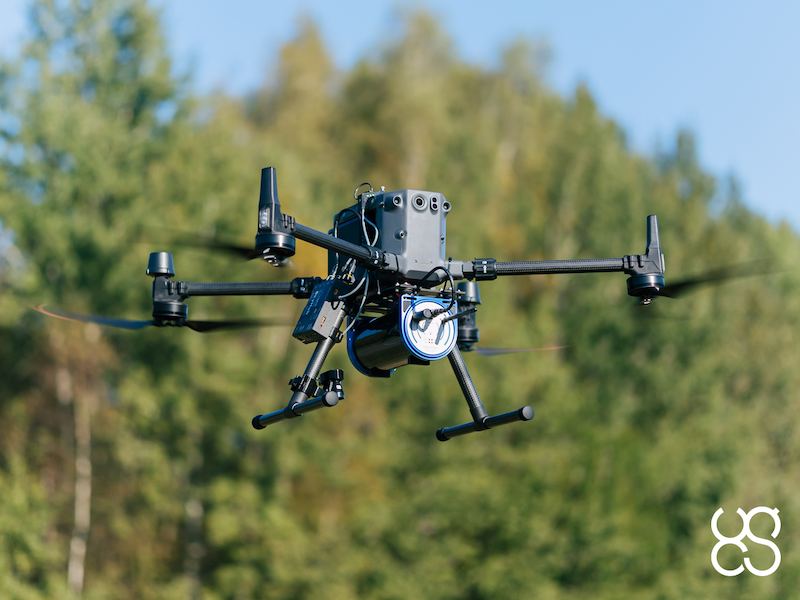

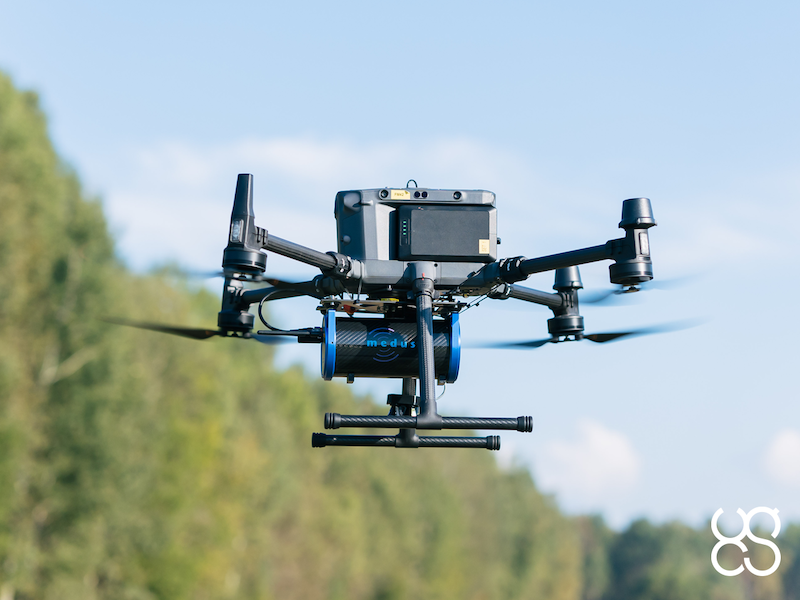

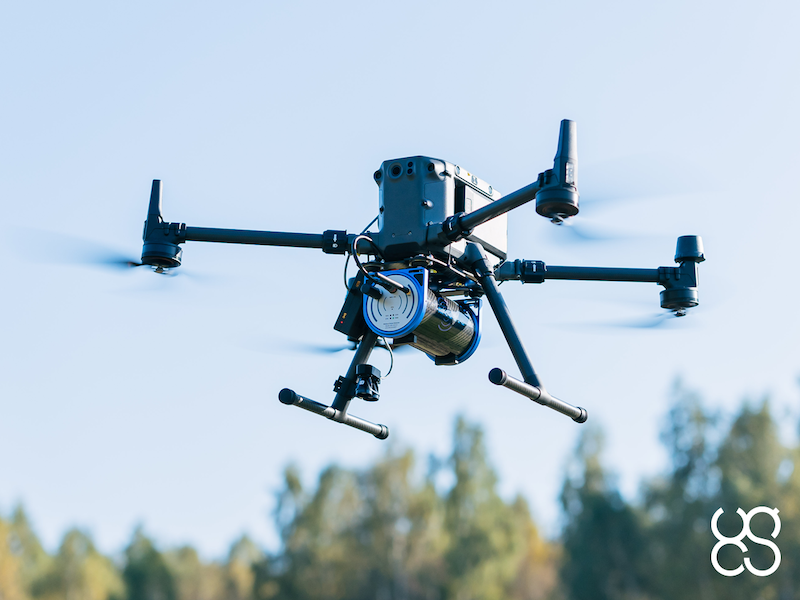

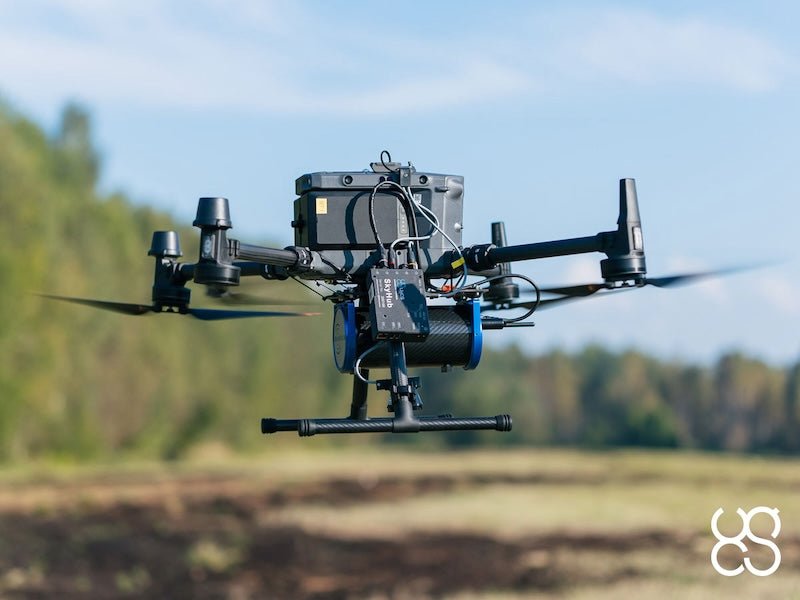

A gamma-ray spectrometer (GRS) measures and analyzes the energy and intensity of gamma rays emitted by radioactive substances — since each element's gamma-ray energy signature is unique, the instrument can identify what it is detecting. The Medusa Radiometrics MS-350 is a well-balanced sensor suitable for a range of applications, yet compact and light enough to mount on popular drones such as the DJI M350 RTK or Inspired Flight IF800.
The kit ships with a transportation box and mountings for the DJI M300/M350 RTK drone (mounts for other drones available on request). Additional components and software are required to fly the spectrometer, so SPH Engineering recommends ordering a complete set.
Technical
| Scintillation crystal | 350 ml CsI |
| Mapping speeds | Up to 15 km/h |
| Recording frequency | Up to 5 Hz |
| Online radionuclide analysis | 40K, 238U, 232Th and 137Cs |
Data
| Format | JSON, NMEA, CSV |
| Streaming | RS-232, Ethernet and Wi-Fi |
| Internal storage | 16 GB (up to 500 hours of recording) |
Connectivity
| Wi-Fi | 2.4 and 5 GHz |
| Ethernet | 100 Mbps |
| Serial | RS-232 |
Environmental
| Operating temperature | -20°C to +65°C |
| Ingress protection | IP65 |
Mechanical
| Sensor dimensions & weight | 100 (⌀) x 215 (L) mm, 2.7 kg |
| Packaging dimensions & weight | 42 x 50 x 23 cm, 6 kg |
Battery
| Input voltage | 5–35 V |
| Power consumption | 3 W (avg), 6 W (max) |
| Airborne variant | Drone main battery is used to provide power |
| Ground surveys | Up to 8 hours |
What's in the kit
- Medusa Radiometrics MS-350 sensor
- Transportation box
- Mountings for DJI M300/M350 RTK drone (mounts for other drones available on request)

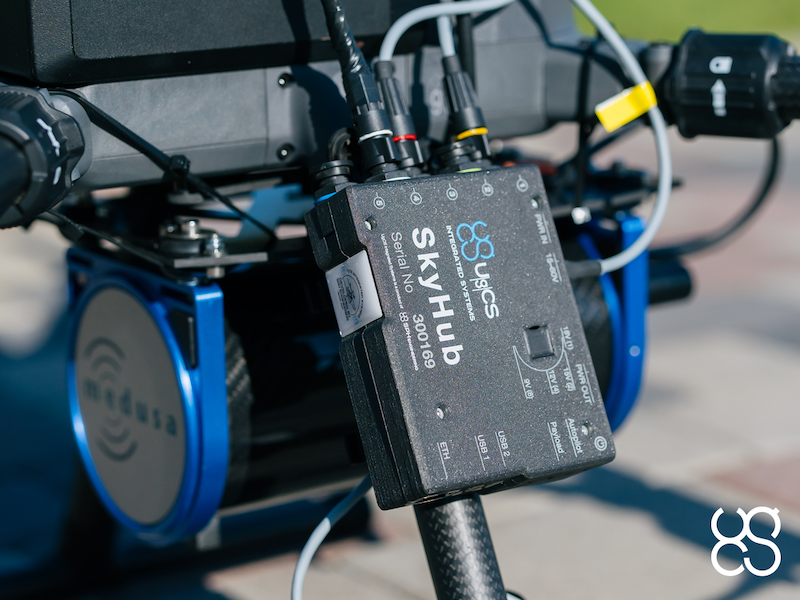

- Power cable (for SkyHub)
- GPS cable (for SkyHub)
- Software for data processing (Medusa Gamman)
