EchoLogger · SKU IS-EL-ECT-D24S
EchoLogger ECT D24S echo sounder
Dual-frequency (200/450 kHz) single-beam echo sounder tuned for shallow, weed-choked ponds, lakes, and rivers.
Price on request

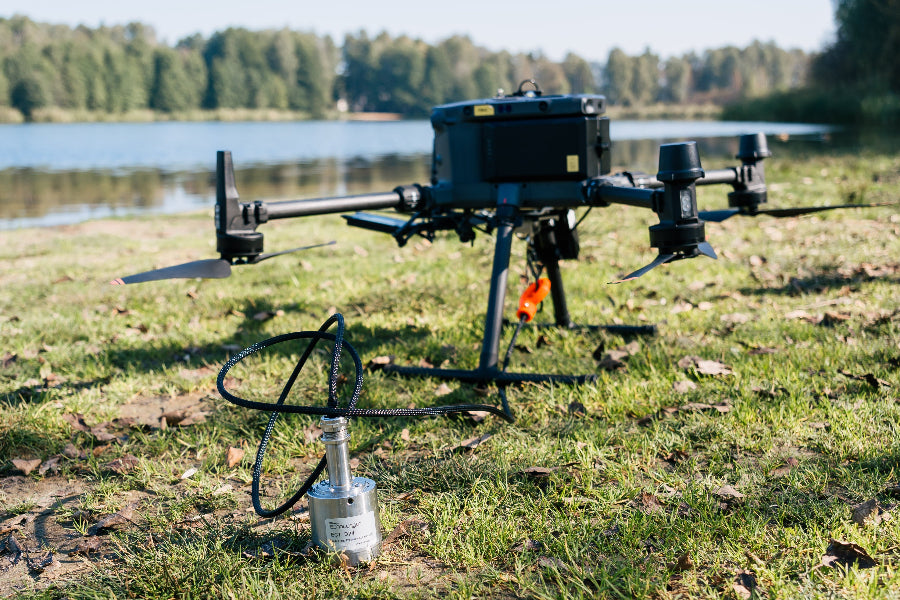

A dual-frequency echo sounder with an integrated tilt/temperature sensor, harness, stainless-steel housing, and drone mountings.

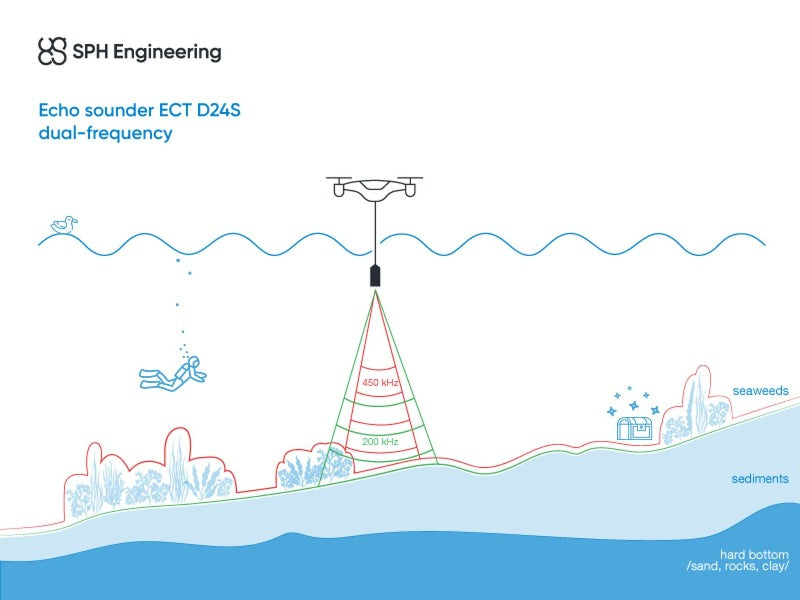

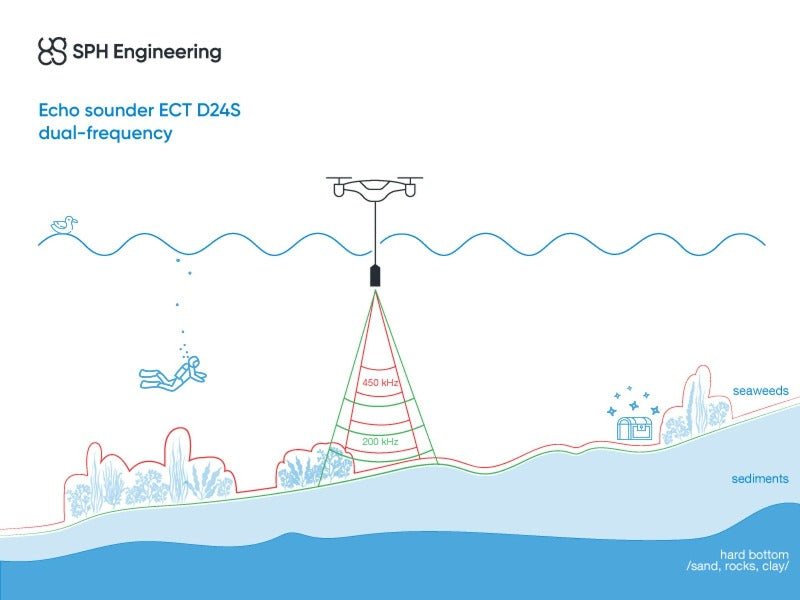

The 200/450 kHz combination suits shallow, weed-heavy ponds, lakes and rivers — 200 kHz keeps a continuous bottom return while 450 kHz covers the shallow dead zone.
Water Depth Mapping (Bathymetry)Dredging Planning & MonitoringHydrology
Technical Specifications
| Type | SBES, Dual-frequency |
| Acoustic frequency | 200/450 kHz |
| Measurement range | 0.50–200 m (200kHz); 0.15–100 m (450kHz) |
| Suitable for sediment measurements | No |
What's in the kit
- EchoLogger ECTD24SS5 echo sounder
- Harness with carabiner
- Stainless steel housing
- RS232 data cable for SkyHub
- Transport case
