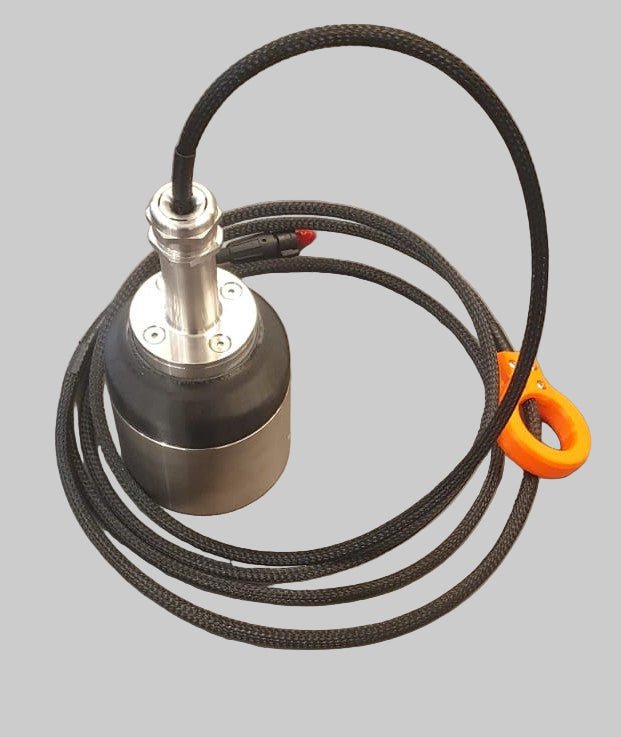

EchoLogger ECT D052S echo sounder
Dual-frequency (50/200 kHz) echo sounder built for deeper water and sediment-penetrating surveys.
Price on request
A dual-frequency echo sounder with integrated tilt/temperature sensor, harness, housing, and drone mountings.

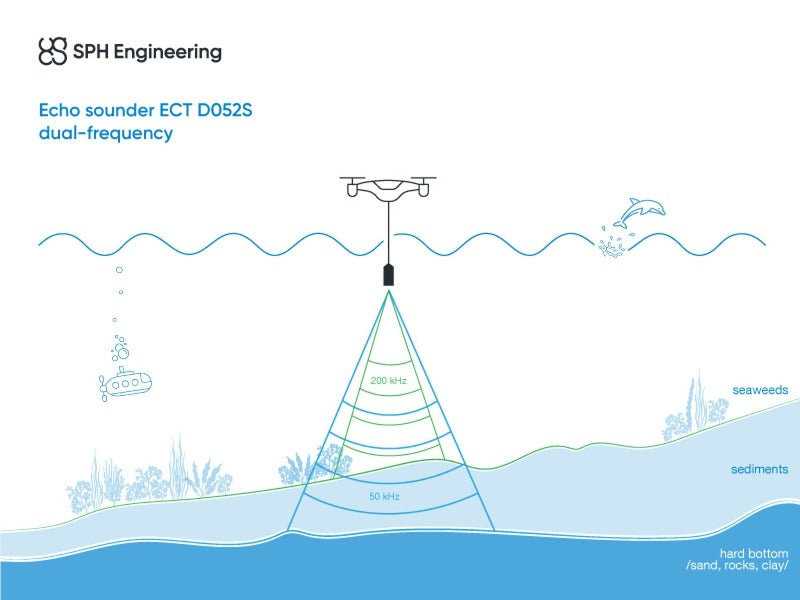

Rated suitable for sediment measurements — the 50/200 kHz pairing suits deeper reservoirs and dredging surveys where distinguishing soft sediment from hard bottom matters.
Water Depth Mapping (Bathymetry)Dredging Planning & MonitoringHydrology
Technical Specifications
| Type | SBES, Dual-frequency |
| Acoustic frequency | 50/200 kHz |
| Measurement range | 1.00–200 m (50kHz); 0.50–200 m (200kHz) |
| Suitable for sediment measurements | Yes |
What's in the kit
- EchoLogger ECTD052S echo sounder
- Harness with carabiner
- Stainless steel housing
- RS232 data cable for SkyHub
- Transport case
