Radarteam · SKU IS-RADARTEAM-COBRA-PLUGIN
GPR system: Radarteam Cobra Plug-In GPR
Low-frequency GPR with three swappable antennas (52/80/124 MHz) for deep subsurface geophysical and engineering surveys.
Price on request

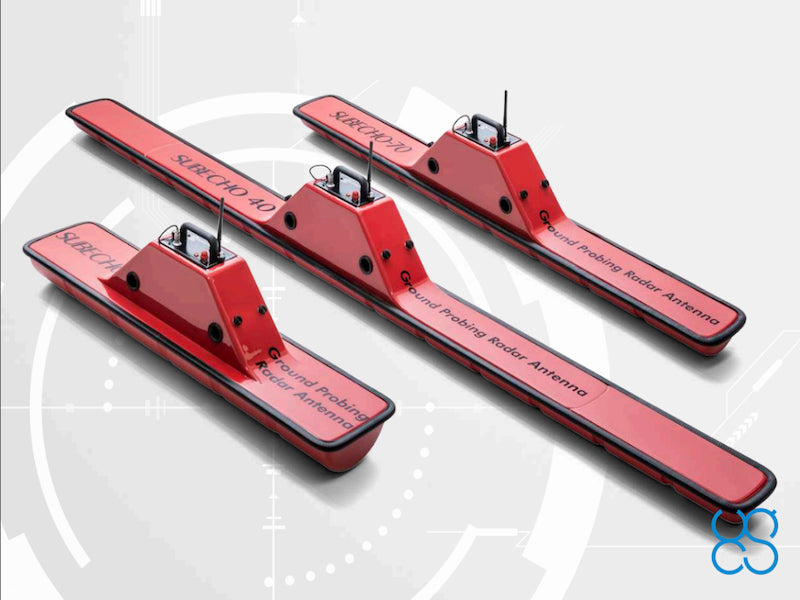

Low-frequency, unshielded-antenna GPR built around Radarteam's Cobra Plug-In controller, offered with three swappable antenna options — SE-40 (52 MHz), SE-70 (80 MHz), and SE-150 (124 MHz).
Aimed at deep subsurface geophysical and engineering investigations, the system can reach roughly 20-30 m depending on ground properties.
Deep geophysical investigationsEngineering surveys where high resolution is not required
Technical
| Type | Single-channel, unshielded antenna |
| Central Frequency | SE-40: 52 MHz / SE-70: 80 MHz / SE-150: 124 MHz |
| Sampling | Real Time Sampling (RTS) |
| Depth | Up to 20-30 m depending on ground properties |
Environmental
| Temperature | -20°C to 50°C |
| Ingress Protection | IP67 |
Mechanical
| Weight | SE-40: 5.2 kg / SE-70: 4.9 kg / SE-150: 4.6 kg |
What's in the kit
- Cobra Plug-In GPR system (controller)
- Antenna (SE-40 or SE-70 or SE-150)
- Rugged tablet computer
- Rugged transport case
- Charger
- Prism2 software
